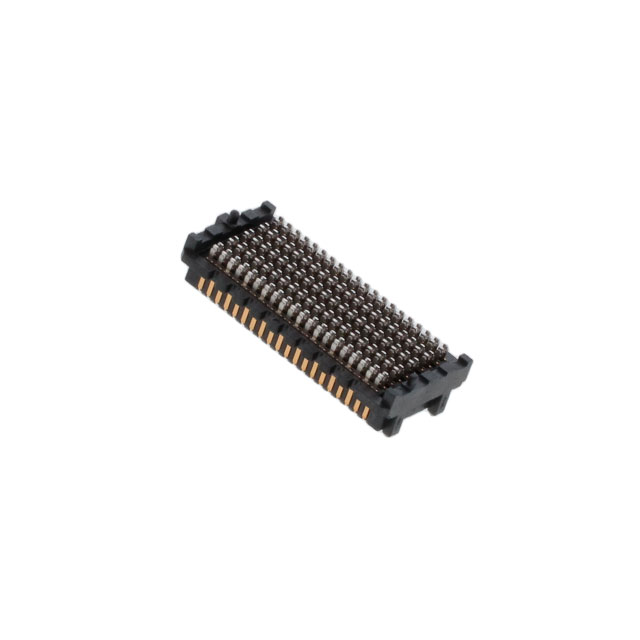

Specification	SEAM-20-03.5-S-10-2-A-K-TR

Connector Type	MALE, High Density Array
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide, Pick and Place
Height Above Board	0.24 in
Mated Stacking Height Options	11mm, 9.5mm, 10mm, 8.5mm
Mounting Type	Surface Mount
Number of Positions	200
Number of Rows	10
Pitch	0.05 in

SEAM-20 Series

...

Part	Number of Rows	Height Above Board	Mounting Type	Connector Type	Contact Finish Thickness	Number of Positions	Contact Finish	Features	Pitch	Mated Stacking Height Options
Samtec Inc. SEAM-40-02.0-L-08-1-A-K-TR	8	0.181 in	Surface Mount	High Density Array MALE	10 Ąin	320	Gold	Board Guide Pick and Place	0.05 in	10mm 7mm 8.5mm 8mm 9.5mm
Samtec Inc. SEAM-40-11.0-SM-10-2-A-K-TR	10	0.575 in	Surface Mount	High Density Array MALE	30 µin	400	Gold	Board Guide Pick and Place	0.05 in	16mm 17.5mm 17mm 18.5mm 19mm
Samtec Inc. SEAM-40-02.0-L-04-1-A-GP-K-TR	4	0.181 in	Surface Mount	High Density Array MALE	10 Ąin	160	Gold	Board Guide Mating Flange Pick and Place	0.05 in	7mm 8.5mm 8mm 9.5mm
Samtec Inc. SEAM-40-01-S-08-2-RA-K-TR	8	0.411 in	Right Angle Surface Mount	High Density Array MALE	30 µin	320	Gold	Board Guide Pick and Place	0.05 in
Samtec Inc. SEAM-40-06.5-S-08-1-A-K-TR	8	0.36 in	Surface Mount	High Density Array MALE	30 µin	320	Gold	Board Guide Pick and Place	0.05 in	11.5mm 12.5mm 13mm
Samtec Inc. SEAM-40-01-L-08-1-RA-TR	8	0.411 in	Right Angle Surface Mount	High Density Array MALE	10 Ąin	320	Gold	Board Guide	0.05 in
Samtec Inc. SEAM-40-03.5-S-06-1-A-K-TR	6	0.24 in	Surface Mount	High Density Array MALE	30 µin	240	Gold	Board Guide Pick and Place	0.05 in	10mm 11.5mm 11mm 8.5mm 9.5mm
Samtec Inc. SEAM-40-01-L-06-1-RA-GP-K-TR	6	0.311 in	Right Angle Surface Mount	High Density Array MALE	10 Ąin	240	Gold	Board Guide Mating Flange Pick and Place	0.05 in
Samtec Inc. SEAM-40-03.5-L-08-2-A-K-TR	8	0.24 in	Surface Mount	High Density Array MALE	10 Ąin	320	Gold	Board Guide Pick and Place	0.05 in	10mm 11.5mm 11mm 8.5mm 9.5mm
Samtec Inc. SEAM-40-01-L-06-2-RA-GP-TR	6	0.311 in	Right Angle Surface Mount	High Density Array MALE	10 Ąin	240	Gold	Board Guide Mating Flange	0.05 in
