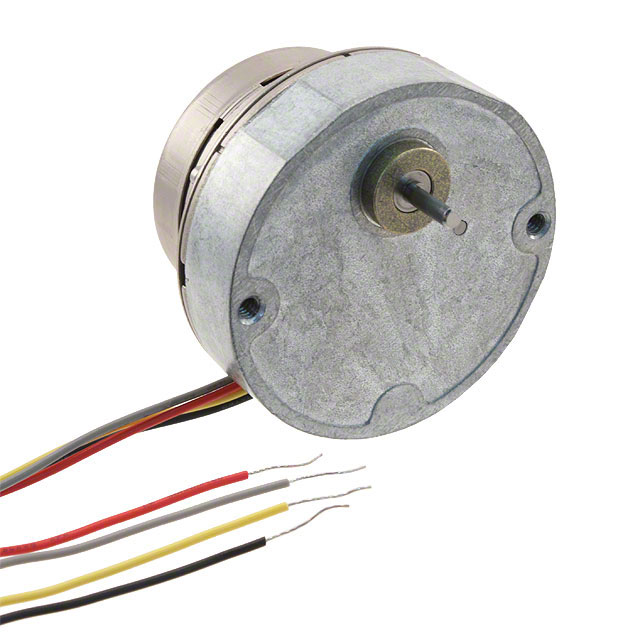

42M048C2B-R21

Active

Portescap

STEP MOTOR PM GEARED BIPOLAR 12V

Search across all available documentation for this part.

Active

Portescap

STEP MOTOR PM GEARED BIPOLAR 12V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Hole Spacing	Mounting Hole Spacing	Coil Type	Features	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	Weight	Weight	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Amps)	Rotor Inertia	Steps per Revolution	Step Angle	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Termination Style	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]
Portescap 42M048C2U-R21	47.63 mm	1.88 in	Unipolar	Round Shaft	0.093 in	2.36 mm	12 VDC	312.07 g	0.688 lb	Permanent Magnet Gear Motor	42 mm	1.65 in	0.23 A	12.5 gcm˛	480	0.75 °	-20 C	70 °C	52.4 Ohms	9.4 oz-in	66.2 mNm	Wire Leads	0.469 in	11.92 mm
Portescap 42M048C2B-R21	47.63 mm	1.88 in	Bipolar	Round Shaft	0.093 in	2.36 mm	12 VDC	312.07 g	0.688 lb	Permanent Magnet Gear Motor	42 mm	1.65 in	0.55 A	12.5 gcm˛	480	0.75 °	-20 C	70 °C		11.9 oz-in	84 mNm	Wire Leads	0.469 in	11.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.56

General part information

Bipolar Stepper Motor Permanent Magnet Gear Motor Frame Size 480.0 Step 550 mA 12VDC
