Description
General part information
42M048 Series

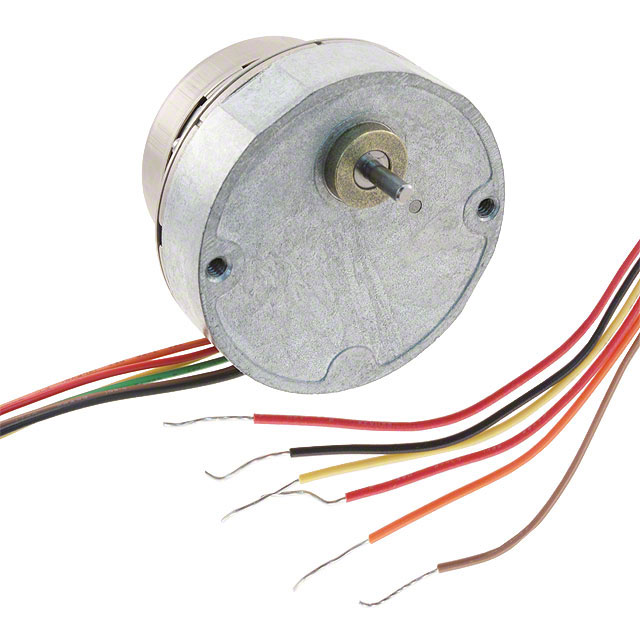

Unipolar Stepper Motor Permanent Magnet Gear Motor Frame Size 480.0 Step 230 mA 12VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 42M048C2U-R21 |
|---|---|
| Coil Resistance | 52.4 Ohms |
| Coil Type | Unipolar |
| Current Rating | 0.23 A |
| Diameter - Shaft | 0.093 in |
| Features | Round Shaft |
| Length - Shaft and Bearing | 0.469 in |
| Mounting Hole Spacing | 1.88 in |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Rotor Inertia | 12.5 gcm² |
| Size / Dimension Diameter | 1.65 in |
| Size / Dimension Shape | Round |
| Step Angle | 0.75 ° |
| Steps per Revolution | 480 steps |
| Termination Style | Wire Leads |
| Torque - Holding (mNm) | 66.2 mNm |
| Torque - Holding (oz-in) | 9.4 oz-in |
| Type | Permanent Magnet Gear Motor |
| Voltage - Rated | 12 VAC |
| Weight | 0.688 lb |
