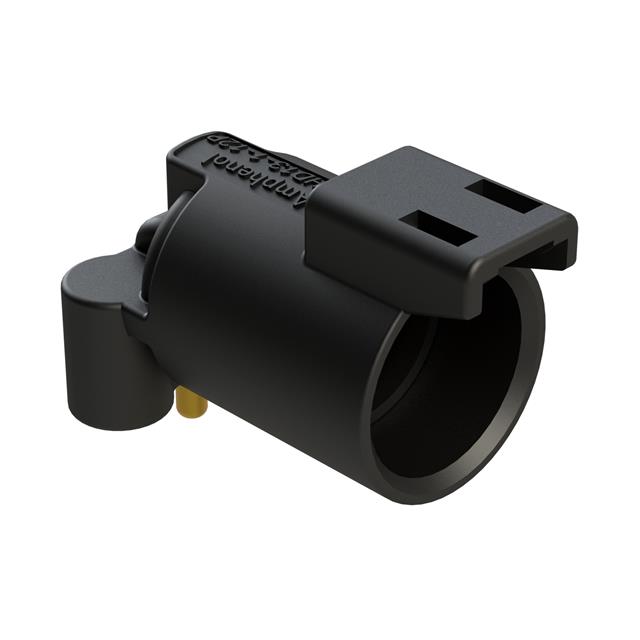

Specification	ATFHD13-1-12P-BM11

Applications	Marine, Military, Agriculture, Transportation
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	25 A
Fastening Type	Latch Lock
Features	Board Lock
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Position Types	Power
Primary Material	Plastic
Shell Material	Thermoplastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	500 V

ATFHD13 Series

Part	Shell Material	Insert Material	Color	Primary Material	Voltage Rating	Current Rating	Orientation	Number of Positions	Position Types	Termination	Shielding	Contact Material	Mounting Type	Applications	Contact Finish - Mating	Features	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Connector Type	Ingress Protection IP Rating	Ingress Protection Description
McGill Microwave Systems ATFHD13-1-12P-BM03	Thermoplastic	Thermoplastic	Black	Plastic	500 V	25 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Tin	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-4P-BM11	Thermoplastic	Thermoplastic	Black	Plastic	1000 V	100 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Gold		125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-12P-BM13	Thermoplastic	Thermoplastic	Black	Plastic	500 V	25 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Tin	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-8P-BM03	Thermoplastic	Thermoplastic	Black	Plastic	500 V	60 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Nickel	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-8P-BM01	Thermoplastic	Thermoplastic	Black	Plastic	500 V	60 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Gold	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-4P-BM13	Thermoplastic	Thermoplastic	Black	Plastic	1000 V	100 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Nickel		125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-12P-BM11	Thermoplastic	Thermoplastic	Black	Plastic	500 V	25 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Gold	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
