ATFHD13 Series

Catalog

CONN CIRCULAR PIN 1 POS SOLDER RA THRU-HOLE 1 TERMINAL 1 PORT BOX

Part	Shell Material	Insert Material	Color	Primary Material	Voltage Rating	Current Rating	Orientation	Number of Positions	Position Types	Termination	Shielding	Contact Material	Mounting Type	Applications	Contact Finish - Mating	Features	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Connector Type	Ingress Protection IP Rating	Ingress Protection Description
McGill Microwave Systems ATFHD13-1-12P-BM03	Thermoplastic	Thermoplastic	Black	Plastic	500 V	25 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Tin	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-4P-BM11	Thermoplastic	Thermoplastic	Black	Plastic	1000 V	100 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Gold		125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof

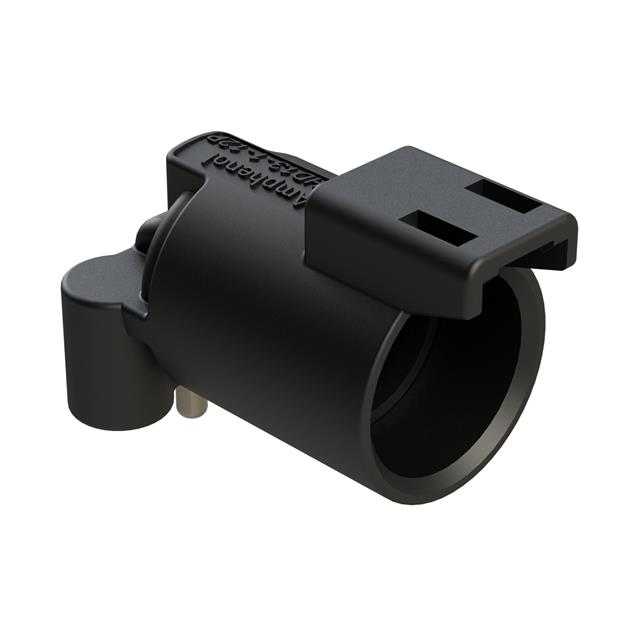

McGill Microwave Systems ATFHD13-1-12P-BM13	Thermoplastic	Thermoplastic	Black	Plastic	500 V	25 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Tin	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-8P-BM03	Thermoplastic	Thermoplastic	Black	Plastic	500 V	60 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Nickel	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof

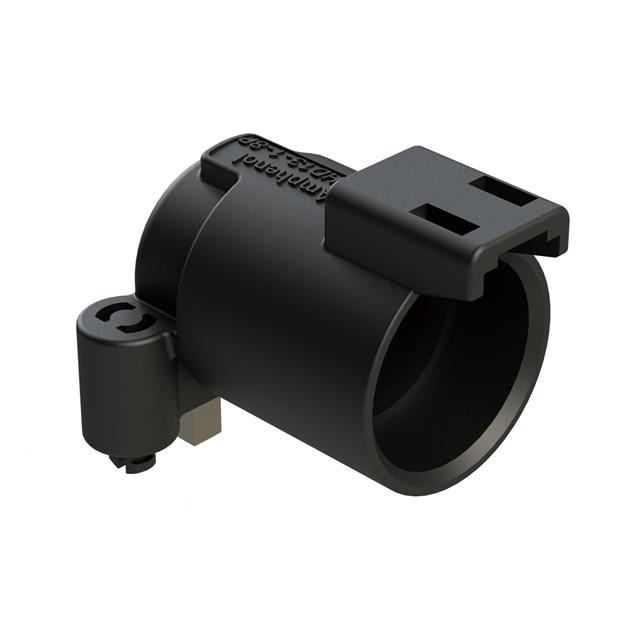

McGill Microwave Systems ATFHD13-1-8P-BM01	Thermoplastic	Thermoplastic	Black	Plastic	500 V	60 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Gold	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-4P-BM13	Thermoplastic	Thermoplastic	Black	Plastic	1000 V	100 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Nickel		125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
McGill Microwave Systems ATFHD13-1-12P-BM11	Thermoplastic	Thermoplastic	Black	Plastic	500 V	25 A	Keyed	1	Power	Solder	Unshielded	Copper Alloy	Right Angle Through Hole	Agriculture Marine Military Transportation	Gold	Board Lock	125 °C	-55 °C	Latch Lock	Male Pins Receptacle	IP67 IP69K	Dust Tight Water Resistant Waterproof
