Specification	D38999/26ME26SCL

Connector Type	Receptacle Housing
Contact Type	Crimp
Fastening Type	Threaded
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Orientation	C
Primary Material	Metal
Shell Size (MIL)	E
Type	For Female Sockets

D38999/26ME Series

Part	Number of Positions	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Current Rating	Shell Finish	Shell Material	Termination	Shell Size (MIL)	Ingress Protection Description	Ingress Protection IP Rating	Qualification	Shielding	Orientation	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Grade	Features	Mounting Type	Connector Type	Primary Material	Contact Material	Applications	Contact Finish Thickness - Mating	Insert Material	Type	Housing Color	Contact Type	Contact Size	Note	Shell Size - Insert Length	Shell Size - Insert Width	Ingress Protection	Contact Shape	Color	Current Rating Options
Amphenol Aerospace Operations D38999/26ME35SN	55	35	17	5 A	Nickel	Composite	Crimp	E	Dust Tight Waterproof	IP67	MIL-DTL-38999 Series III	Shielded	N (Normal)	Gold	200 °C	-65 °C	Threaded	Military	Coupling Nut	Free Hanging (In-Line)	Female Sockets Plug	Composite
Amphenol Aerospace Operations D38999/26ME35HD	55	35	17	5 A	Nickel	Composite	Crimp	E	Dust Tight Waterproof	IP67	MIL-DTL-38999 Series III	Shielded	D	Gold	200 °C	-65 °C	Threaded	Military	Coupling Nut	Free Hanging (In-Line)	Male Pins Plug	Composite	Copper Alloy	Aviation Marine Military	100 µin	Thermoplastic
Amphenol Aerospace Operations D38999/26ME8BC	8				Electroless Nickel	Composite		E			MIL-DTL-38999 Series III		C				Threaded	Military		Free Hanging (In-Line)	Receptacle Housing	Metal					For Female Sockets	Silver	Crimp	16 S	Contacts Not Included	17 mm	8 mm
Amphenol Aerospace Operations D38999/26ME35PCL	6							E					C				Threaded			Free Hanging (In-Line)	Plug Housing	Metal					For Male Pins		Crimp
Amphenol Aerospace Operations D38999/26ME26JC	26	26	17	7.5 A	Nickel	Composite	Crimp	E	Dust Tight Waterproof	IP67	MIL-DTL-38999 Series III	Shielded	C	Gold	200 °C	-65 °C	Threaded	Military	Coupling Nut	Free Hanging (In-Line)	Female Sockets Plug	Composite	Copper Alloy	Aviation Marine Military	100 µin	Thermoplastic
Amphenol Aerospace Operations D38999/26ME99SA-LC	23	99	17		Electroless Nickel	Composite		E			MIL-DTL-38999 Series III	Shielded	A		200 °C	-65 °C	Threaded	Military	Coupling Nut Self Locking	Free Hanging (In-Line)	Plug Housing						For Female Sockets	Silver	Crimp	16 20	Contacts Not Included			Environment Resistant	Circular
Amphenol Aerospace Operations D38999/26ME99SC	23	99	17		Electroless Nickel	Composite	Crimp	E				Shielded	C	Gold	200 °C	-65 °C	Threaded			Free Hanging (In-Line)	Female Sockets Plug	Composite	Copper Alloy	Aerospace Aviation Marine Military	50 µin											Silver	13A 7.5A
Amphenol Aerospace Operations D38999/26ME26PC	26	26	17	7.5 A	Nickel	Composite	Crimp	E	Dust Tight Waterproof	IP67	MIL-DTL-38999 Series III	Shielded	C	Gold	200 °C	-65 °C	Threaded	Military	Coupling Nut	Free Hanging (In-Line)	Male Pins Plug	Composite	Copper Alloy	Aviation Marine Military	50 µin	Thermoplastic
Amphenol Aerospace Operations D38999/26ME26SCL	26							E					C				Threaded			Free Hanging (In-Line)	Receptacle Housing	Metal					For Female Sockets		Crimp		Contacts Not Included

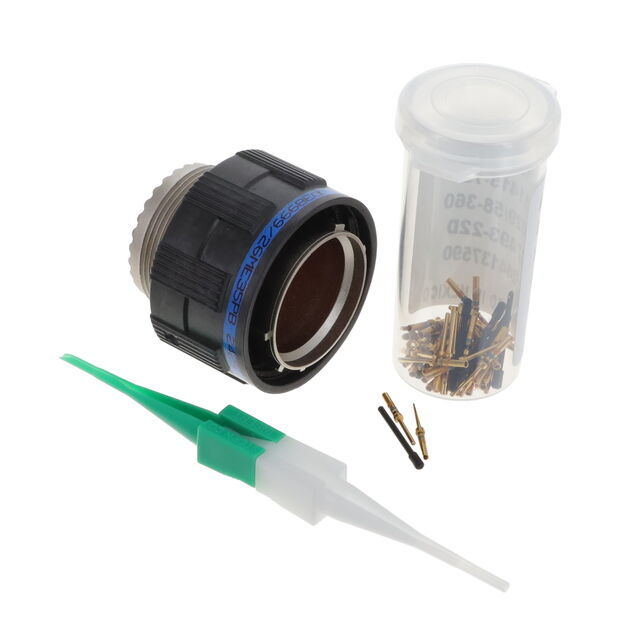

Amphenol Aerospace Operations D38999/26ME35PB	55	35	17	5 A	Nickel	Composite	Crimp	E	Dust Tight Waterproof	IP67	MIL-DTL-38999 Series III	Shielded	B	Gold	200 °C	-65 °C	Threaded	Military	Coupling Nut	Free Hanging (In-Line)	Male Pins Plug	Composite	Copper Alloy	Aviation Marine Military	50 µin	Thermoplastic
