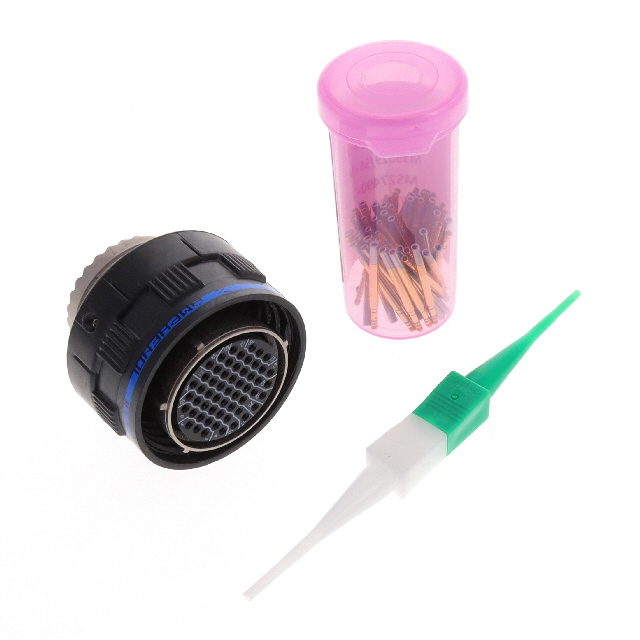

D38999/26ME35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 55POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26ME35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 55POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26ME35SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	55 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Composite
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp

D38999/26ME Series

Part	Housing Color	Ingress Protection	Shell Size, MIL	Features	Operating Temperature [Min]	Operating Temperature [Max]	Note	Qualification	Shell Finish	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Grade	Number of Positions	Mounting Type	Contact Size	Contact Size	Orientation	Contact Shape	Connector Type	Shell Material	Contact Type	Type	Shielding	Contact Size	Shell Size - Insert	Contact Material	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Primary Material	Contact Finish - Mating	Termination
Amphenol Aerospace Operations D38999/26ME99SA-LC	Silver	Environment Resistant	E	Coupling Nut Self Locking	-65 ░C	200 °C	Contacts Not Included	MIL-DTL-38999 Series III	Electroless Nickel	99	17	Military	23	Free Hanging (In-Line)	16 20	2 21	A	Circular	Plug Housing	Composite	Crimp	For Female Sockets	Shielded
Amphenol Aerospace Operations D38999/26ME35BN	Silver	Environment Resistant	E	Coupling Nut Self Locking	-65 ░C	200 °C	Contacts Not Included	MIL-DTL-38999 Series III	Electroless Nickel	35	17	Military	55 positions	Free Hanging (In-Line)			N	Circular	Plug Housing	Composite	Crimp	For Female Sockets	Shielded	22D
Amphenol Aerospace Operations D38999/26ME2AA	Silver	Environment Resistant	E	Coupling Nut Self Locking	-65 ░C	200 °C	Contacts Not Included	MIL-DTL-38999 Series III	Electroless Nickel			Military	1 38	Free Hanging (In-Line)			A	Circular	Plug Housing	Composite	Crimp	For Male Pins	Shielded	22D 8 Twinax	17-2
Amphenol Aerospace Operations D38999/26ME35SN		Environment Resistant	E	Coupling Nut	-65 ░C	200 °C		MIL-DTL-38999 Series III	Electroless Nickel	35	17	Military	55 positions	Free Hanging (In-Line)			N		Female Sockets Plug	Composite			Shielded			Copper Alloy	Aerospace Aviation Marine Military	1.27 µm	50 µin	Silver	Composite	Gold	Crimp
Amphenol Aerospace Operations D38999/26ME26HD		Environment Resistant	E	Coupling Nut Self Locking	-65 ░C	200 °C		MIL-DTL-38999 Series III	Electroless Nickel	26	17	Military	26	Free Hanging (In-Line)			D		Male Pins Plug	Composite			Shielded			Copper Alloy	Aviation Marine Military	2.54 çm	100 çin	Silver	Composite	Gold	Crimp
Amphenol Aerospace Operations D38999/26ME35JB		Environment Resistant	E	Coupling Nut	-65 ░C	200 °C		MIL-DTL-38999 Series III	Electroless Nickel	35	17	Military	55 positions	Free Hanging (In-Line)			B		Female Sockets Plug	Composite			Shielded			Copper Alloy	Aerospace Aviation Military	2.54 çm	100 çin	Silver	Composite	Gold	Crimp
Amphenol Aerospace Operations D38999/26ME2PA-LC	Silver	Environment Resistant	E	Coupling Nut Self Locking	-65 ░C	200 °C	Contacts Not Included	MIL-DTL-38999 Series III	Electroless Nickel			Military	1 38	Free Hanging (In-Line)			A	Circular	Plug Housing	Composite	Crimp	For Male Pins	Shielded	22D 8 Twinax	17-2
Amphenol Aerospace Operations D38999/26ME35HA		Environment Resistant	E	Coupling Nut	-65 ░C	200 °C		MIL-DTL-38999 Series III	Electroless Nickel	35	17	Military	55 positions	Free Hanging (In-Line)			A		Male Pins Plug	Composite			Shielded			Copper Alloy	Aerospace Aviation Military	2.54 çm	100 çin	Silver	Composite	Gold	Crimp
Amphenol Aerospace Operations D38999/26ME35JA		Environment Resistant	E	Coupling Nut	-65 ░C	200 °C		MIL-DTL-38999 Series III	Electroless Nickel	35	17	Military	55 positions	Free Hanging (In-Line)			A		Female Sockets Plug	Composite			Shielded			Copper Alloy	Aerospace Aviation Military	2.54 çm	100 çin	Silver	Composite	Gold	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 178.02
		1	$ 105.21
		10	$ 139.15
		10	$ 91.18
		25	$ 80.46
		25	$ 126.87
		50	$ 71.99
		50	$ 118.61
		100	$ 63.13

Description

General part information

D38999/26ME Series

55 Position Circular Connector Plug, Female Sockets Crimp
