ADC124S051CIMM/NOPB
ActiveTexas Instruments
4 CHANNEL, 200 KSPS TO 500 KSPS, 12-BIT A/D CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
ADC124S051CIMM/NOPB
ActiveTexas Instruments
4 CHANNEL, 200 KSPS TO 500 KSPS, 12-BIT A/D CONVERTER
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ADC124S051CIMM/NOPB | ADC124S051 Series |
|---|---|---|
| Architecture | SAR | SAR |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC |
| Data Interface | SPI, DSP | SPI, DSP |
| Input Type | Single Ended | Single Ended |
| Mounting Type | Surface Mount | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 12 | 12 |
| Number of Inputs | 4 | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

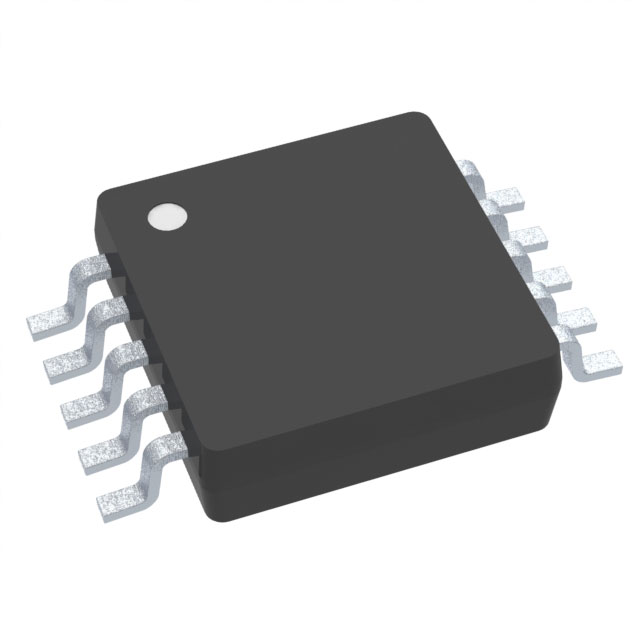

| Package / Case | 10-TFSOP, 10-MSOP | 10-TFSOP, 10-MSOP |
| Ratio - S/H:ADC | 1:1 | 1:1 |
| Reference Type | Supply | Supply |
| Sampling Rate (Per Second) | 500 kPer Second | 500 kPer Second |
| Supplier Device Package | 10-VSSOP | 10-VSSOP |
| Voltage - Supply, Analog [Max] | 5.25 V | 5.25 V |
| Voltage - Supply, Analog [Min] | 2.7 V | 2.7 V |
| Voltage - Supply, Digital [Max] | 5.25 V | 5.25 V |
| Voltage - Supply, Digital [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
ADC124S051 Series
4 Channel, 200 ksps to 500 kSPS, 12-Bit A/D Converter
| Part | Data Interface | Input Type | Package / Case | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of Inputs | Supplier Device Package | Ratio - S/H:ADC | Number of A/D Converters | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Sampling Rate (Per Second) | Architecture | Mounting Type | Reference Type | Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Number of Bits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments ADC124S051CIMMX/NOPBThe ADC124S051 is a low-power, four-channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC124S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to four input signals at inputs IN1 through IN4.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE and many common DSP serial interfaces.
The ADC124S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 3.0 mW and 10.0 mW, respectively. The power-down feature reduces the power consumption to just 0.14 µW using a +3V supply, or 0.32 µW using a +5V supply.
The ADC124S051 is packaged in a 10-lead VSSOP package. Operation over the industrial temperature range of −40°C to +85°C is ensured.
The ADC124S051 is a low-power, four-channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC124S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to four input signals at inputs IN1 through IN4.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE and many common DSP serial interfaces.
The ADC124S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 3.0 mW and 10.0 mW, respectively. The power-down feature reduces the power consumption to just 0.14 µW using a +3V supply, or 0.32 µW using a +5V supply.
The ADC124S051 is packaged in a 10-lead VSSOP package. Operation over the industrial temperature range of −40°C to +85°C is ensured. | DSP, SPI | Single Ended | 10-MSOP, 10-TFSOP | 5.25 V | 2.7 V | 4 | 10-VSSOP | 1:1 | 1 | 2.7 V | 5.25 V | 500 kPer Second | SAR | Surface Mount | Supply | MUX-S/H-ADC | -40 °C | 85 °C | 12 |
Texas Instruments ADC124S051CIMM/NOPBThe ADC124S051 is a low-power, four-channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC124S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to four input signals at inputs IN1 through IN4.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE and many common DSP serial interfaces.
The ADC124S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 3.0 mW and 10.0 mW, respectively. The power-down feature reduces the power consumption to just 0.14 µW using a +3V supply, or 0.32 µW using a +5V supply.
The ADC124S051 is packaged in a 10-lead VSSOP package. Operation over the industrial temperature range of −40°C to +85°C is ensured.
The ADC124S051 is a low-power, four-channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC124S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to four input signals at inputs IN1 through IN4.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE and many common DSP serial interfaces.
The ADC124S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 3.0 mW and 10.0 mW, respectively. The power-down feature reduces the power consumption to just 0.14 µW using a +3V supply, or 0.32 µW using a +5V supply.
The ADC124S051 is packaged in a 10-lead VSSOP package. Operation over the industrial temperature range of −40°C to +85°C is ensured. | DSP, SPI | Single Ended | 10-MSOP, 10-TFSOP | 5.25 V | 2.7 V | 4 | 10-VSSOP | 1:1 | 1 | 2.7 V | 5.25 V | 500 kPer Second | SAR | Surface Mount | Supply | MUX-S/H-ADC | -40 °C | 85 °C | 12 |
Description
General part information
ADC124S051 Series
The ADC124S051 is a low-power, four-channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC124S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to four input signals at inputs IN1 through IN4.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE and many common DSP serial interfaces.
The ADC124S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 3.0 mW and 10.0 mW, respectively. The power-down feature reduces the power consumption to just 0.14 µW using a +3V supply, or 0.32 µW using a +5V supply.
