Cable Assemblies

A3KKB-2018M

Active

TE Connectivity Raychem Cable Protection

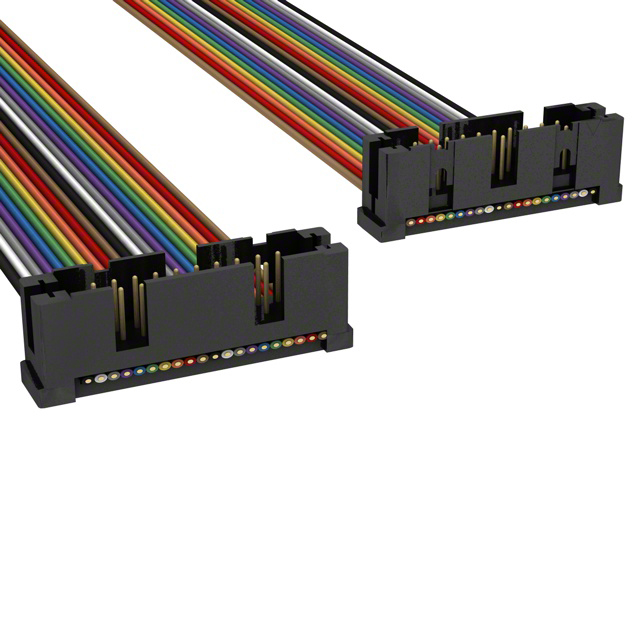

IDC CABLE - APK20B/AE20M/APK20B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Cable Assemblies

A3KKB-2018M

Active

TE Connectivity Raychem Cable Protection

IDC CABLE - APK20B/AE20M/APK20B

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3KKB-2018M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Plug to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

A3KKB Series

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Number of Positions	Pitch - Cable	Pitch - Cable	Cable Termination	Features	Connector Type	Color	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Length	Length	Length
TE Connectivity Raychem Cable Protection A3KKB-4018M	Unshielded	0.76 Ám	30 Áin	2	Gold	40	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon	457.2 mm	1.5 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-1436G	Unshielded	0.76 Ám	30 Áin	2	Gold	14	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug		914.4 mm	3 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-3418M	Unshielded	0.76 Ám	30 Áin	2	Gold	34	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon	457.2 mm	1.5 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-6406G	Unshielded	0.76 Ám	30 Áin	2	Gold	64	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3KKB-2636G	Unshielded	0.76 Ám	30 Áin	2	Gold	26	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug		914.4 mm	3 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-2006M	Unshielded	0.76 Ám	30 Áin	2	Gold	20	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon			0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3KKB-1006M	Unshielded	0.76 Ám	30 Áin	2	Gold	10	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon			0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3KKB-2018G	Unshielded	0.76 Ám	30 Áin	2	Gold	20	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug		457.2 mm	1.5 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-2018M	Unshielded	0.76 Ám	30 Áin	2	Gold	20	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon	457.2 mm	1.5 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-4036G	Unshielded	0.76 Ám	30 Áin	2	Gold	40	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug		914.4 mm	3 ft	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.96
		10	$ 21.51
		25	$ 19.97
		50	$ 18.87
		100	$ 17.84
		250	$ 16.57
		500	$ 15.80

Description

General part information

A3KKB Series

20 Position Cable Assembly Rectangular Plug to Plug 1.50' (457.20mm)
