A3KKB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - APK40B/AE40M/APK40B

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Number of Positions	Pitch - Cable	Pitch - Cable	Cable Termination	Features	Connector Type	Color	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Length	Length	Length
TE Connectivity Raychem Cable Protection A3KKB-4018M	Unshielded	0.76 Ám	30 Áin	2	Gold	40	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon	457.2 mm	1.5 ft	0.1 in	2.54 mm

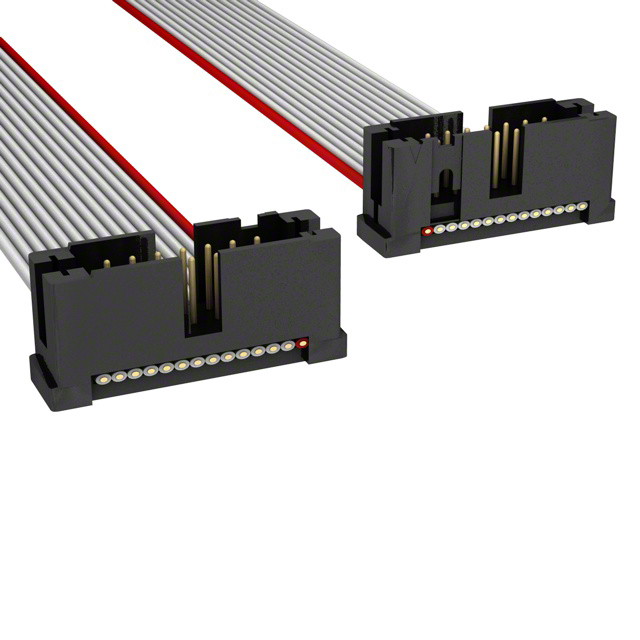

TE Connectivity Raychem Cable Protection A3KKB-1436G	Unshielded	0.76 Ám	30 Áin	2	Gold	14	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug		914.4 mm	3 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-3418M	Unshielded	0.76 Ám	30 Áin	2	Gold	34	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon	457.2 mm	1.5 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-6406G	Unshielded	0.76 Ám	30 Áin	2	Gold	64	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3KKB-2636G	Unshielded	0.76 Ám	30 Áin	2	Gold	26	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug		914.4 mm	3 ft	0.1 in	2.54 mm

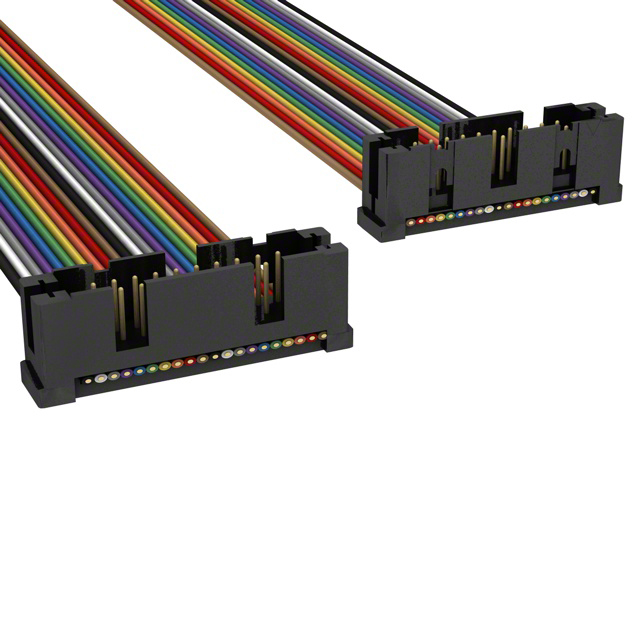

TE Connectivity Raychem Cable Protection A3KKB-2006M	Unshielded	0.76 Ám	30 Áin	2	Gold	20	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon			0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3KKB-1006M	Unshielded	0.76 Ám	30 Áin	2	Gold	10	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon			0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3KKB-2018G	Unshielded	0.76 Ám	30 Áin	2	Gold	20	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug		457.2 mm	1.5 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-2018M	Unshielded	0.76 Ám	30 Áin	2	Gold	20	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug	Multiple Ribbon	457.2 mm	1.5 ft	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3KKB-4036G	Unshielded	0.76 Ám	30 Áin	2	Gold	40	0.05 "	1.27 mm	IDC	Polarizing Key	Plug to Plug		914.4 mm	3 ft	0.1 in	2.54 mm
