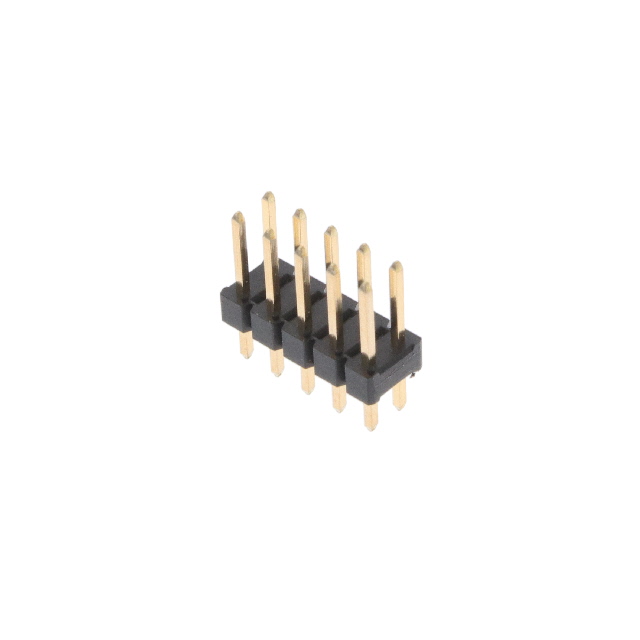

10129381-910001BLF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents10129381-918001BLF Datasheet +1

10129381-910001BLF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Documents10129381-918001BLF Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10129381-910001BLF

Applications	Industrial, Medical, General Purpose, Telecommunications
Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.45 "
Overall Contact Length	11.43 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

10129381 Series

Part	Connector Type	Current Rating (Amps)	Number of Positions Loaded	Insulation Color	Applications	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Material	Shrouding	Overall Contact Length	Overall Contact Length	Style	Number of Rows	Mounting Type	Contact Material	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Termination	Contact Length - Mating [x]	Contact Length - Mating	Contact Shape	Number of Positions	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]
Amphenol ICC (FCI) 10129381-908001BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications	0.12 in	3.05 mm	1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.45 "	11.43 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square	8
Amphenol ICC (FCI) 10129381-916004BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications			1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.508 in	12.9 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.318 "		Square		16	0.09 "	2.29 mm	8.08 mm
Amphenol ICC (FCI) 10129381-916002BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications			1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.42 "	10.67 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square		16	0.09 "	2.29 mm
Amphenol ICC (FCI) 10129381-932004BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications			1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.508 in	12.9 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.318 "		Square			0.09 "	2.29 mm	8.08 mm
Amphenol ICC (FCI) 10129381-924004BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications			1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.508 in	12.9 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.318 "		Square	24		0.09 "	2.29 mm	8.08 mm
Amphenol ICC (FCI) 10129381-906004BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications			1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.508 in	12.9 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.318 "		Square	6		0.09 "	2.29 mm	8.08 mm
Amphenol ICC (FCI) 10129381-930002BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications			1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.42 "	10.67 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square	30		0.09 "	2.29 mm
Amphenol ICC (FCI) 10129381-904003BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications	0.12 in	3.05 mm	1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.538 "	13.67 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.318 "		Square	4				8.08 mm
Amphenol ICC (FCI) 10129381-910001BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications	0.12 in	3.05 mm	1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.45 "	11.43 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square	10
Amphenol ICC (FCI) 10129381-950003BLF	Cuttable Header	3 A	All	Black	General Purpose Industrial Medical Telecommunications	0.12 in	3.05 mm	1 µin	0.025 µm	Male Pin	Thermoplastic	Unshrouded	0.538 "	13.67 mm	Board to Board Cable	2	Through Hole	Copper Alloy	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	Gold	UL94 V-0	105 ░C	-55 °C	0.1 in	2.54 mm	Solder	0.318 "		Square	50				8.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.24
		10	$ 0.18
		100	$ 0.14
		500	$ 0.12
		1000	$ 0.10
		5000	$ 0.09
		10000	$ 0.08

Description

General part information

10129381 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)
