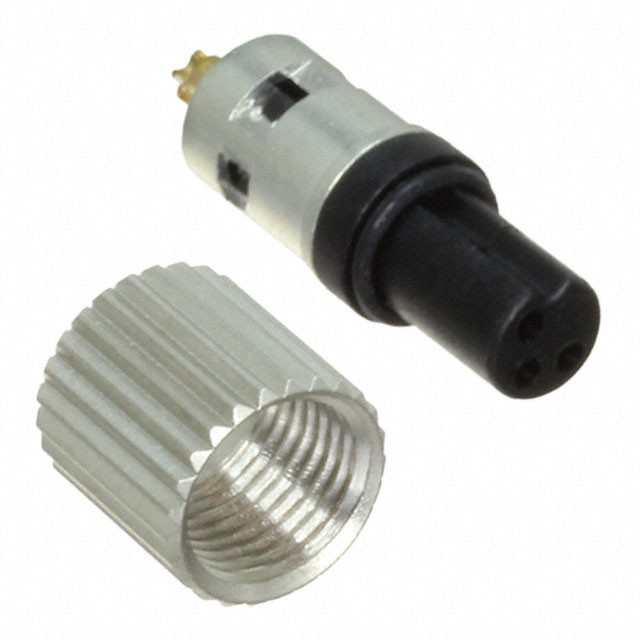

850-003-203RSS4 - 850-003-203RSS4

850-003-203RSS4

Active
MH Connectors

M5 SENSOR CONN, FEMALE, 3POS, CABLE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image ENMiscellaneous EN+2
850-003-203RSS4 - 850-003-203RSS4

850-003-203RSS4

Active
MH Connectors

M5 SENSOR CONN, FEMALE, 3POS, CABLE ROHS COMPLIANT: YES

Deep-Dive with AI

Documents3D Product Image ENMiscellaneous EN+2

Technical Specifications

Parameters and characteristics for this part

Specification850-003-203RSS4
ColorSilver
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact MaterialPhosphor Bronze
FeaturesCoupling Nut
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialThermoplastic Polyurethane (TPU)
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishTin
Shell MaterialBrass
Shell Size - InsertM5-3
ShieldingShielded
Voltage Rating60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 100$ 6.63
NewarkEach 1$ 10.31
10$ 8.25
25$ 8.04
50$ 7.74
100$ 6.63
250$ 6.55
500$ 6.16

Description

General part information

850-003 Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
