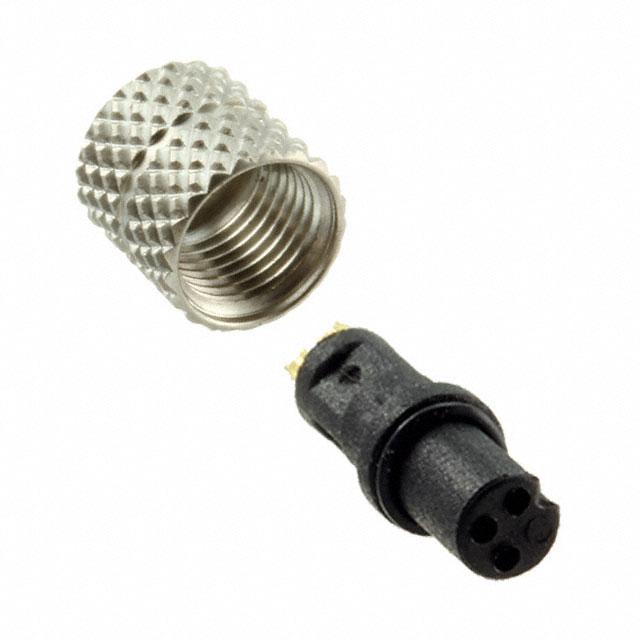

850-003-203RLU1

Active

MH Connectors

SENSOR CONNECTOR, UNSHIELDED, VULCON SERIES, M5, FEMALE, 3 POSITIONS, SOLDER SOCKET

Search across all available documentation for this part.

Active

MH Connectors

SENSOR CONNECTOR, UNSHIELDED, VULCON SERIES, M5, FEMALE, 3 POSITIONS, SOLDER SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	850-003-203RLU1

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Features	Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic Polyurethane (TPU)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M5-3
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Ingress Protection	Insert Material	Voltage Rating	Shell Size - Insert	Contact Finish Thickness - Mating	Shell Material	Shielding	Features	Shell Finish	Color	Orientation	Contact Material	Material Flammability Rating	Primary Material	Mounting Type	Contact Finish - Mating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [custom]	Cable Opening [custom]
MH Connectors 850-003-203RLU1	IP67 - Dust Tight Waterproof	Thermoplastic Polyurethane (TPU)	60 VDC	M5-3	Flash	Brass	Unshielded	Coupling Nut	Nickel	Silver	Keyed	Phosphor Bronze	UL94 V-0	Metal	Free Hanging (In-Line)	Gold	Female Sockets Plug	85 °C	-40 °C
MH Connectors 850-003-203RSS4	IP67 - Dust Tight Waterproof	Thermoplastic Polyurethane (TPU)	60 VDC	M5-3		Brass	Shielded	Coupling Nut	Tin	Silver	Keyed	Phosphor Bronze	UL94 V-0	Metal	Free Hanging (In-Line)	Gold	Female Sockets Plug	85 °C	-40 °C	10 çin	0.25 çm
MH Connectors 850-003-103RLS1	IP67 - Dust Tight Waterproof	Thermoplastic Polyurethane (TPU)	60 VDC	M5-3	Flash	Brass	Shielded		Tin	Silver	Keyed	Brass	UL94 V-0	Metal	Free Hanging (In-Line)	Gold	Male Pins Receptacle	85 °C	-40 °C			3.91 mm	0.154 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
