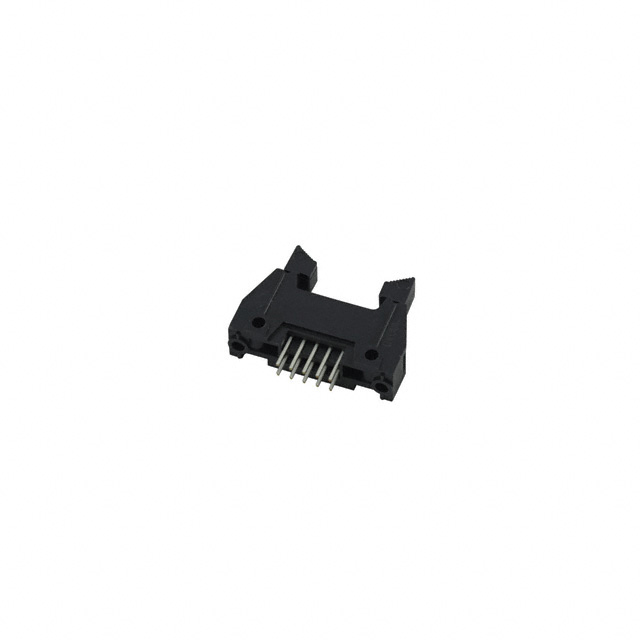

N3793-6202RB

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

N3793-6202RB

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	61	$ 1.63
		250	$ 1.51
		450	$ 1.17
		900	$ 1.17
		5400	$ 1.14
Digikey	Bulk	1	$ 3.01
		10	$ 2.29
		100	$ 1.77
		500	$ 1.49
		1000	$ 1.39
		5000	$ 1.19
Newark	Each	1	$ 2.75
		10	$ 2.51
		100	$ 2.15
		500	$ 1.79
		1000	$ 1.54
		5000	$ 1.36
		10000	$ 1.33

Description

General part information

N3793 Series

The N3793-6202RB is a 10-way 0.100 x 0.100-inch Pak 100 4-wall Straight Header with short roll pin latch/ejector, gold-plated copper alloy contacts and through hole termination. This 3000 series header is glass filled polyester (PCT) insulated, suitable for reflow soldering using paste in hole techniques. This has military (with 3M's 3518 polarizing key) and centerbump polarization, mounting holes for securing header to board.

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Specification	N3793-6202RB	N3793 Series

Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 15.49 mm
Contact Length - Post	0.112 in	0.112 - 0.61 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long, Push-Pull
Insulation Color	Black	Black
Insulation Height	17.27 mm	7.87 - 17.27 mm
Insulation Height	0.68 in	0.31 - 0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.652 in	0.652 - 1.15 in
Overall Contact Length	16.56 mm	16.56 - 29.21 mm
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Press-Fit, Kinked Pin, Solder, Wire Wrap

Part

Shrouding

Contact Finish Thickness - Post

Insulation Material

Contact Length - Post

Insulation Height

Fastening Type

Contact Finish - Post

Number of Positions Loaded

Number of Positions

Mounting Type

Insulation Color

Contact Shape

Connector Type

Pitch - Mating

Contact Length - Mating

Contact Length - Mating [x]

Row Spacing - Mating [x]

Contact Material

Style

Contact Finish Thickness - Mating

Contact Type

Current Rating (Amps)

Contact Finish - Mating

Operating Temperature [Max]

Operating Temperature [Min]

Termination

Number of Rows

Material Flammability Rating

Overall Contact Length

Overall Contact Length [x]

N3793-5502

Shrouded - 4 Wall

200 µin

5.08 µm

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

2.84 mm

0.112 in

0.34 in

8.64 mm

Latch Lock/Eject Hooks, Short

Tin-Lead

All

Through Hole, Right Angle

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Solder

UL94 V-0

N3793-6302RB

Shrouded - 4 Wall

200 µin

5.08 µm

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

2.84 mm

0.112 in

0.68 in

17.27 mm

Latch Lock/Eject Hooks, Long

Tin

All

Through Hole

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Solder

UL94 V-0

0.652 in

16.56 mm

N3793-600T02RB

Shrouded - 4 Wall

300 µin

7.62 µm

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

4.45 mm

0.175 in

0.68 in

17.27 mm

Push-Pull

Tin

All

Through Hole

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Press-Fit, Solder

UL94 V-0

0.715 "

18.16 mm

N3793-5603

Shrouded - 4 Wall

200 µin

5.08 µm

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

3.94 mm

0.155 "

0.34 in

8.64 mm

Latch Lock/Eject Hooks, Long

Tin-Lead

All

Through Hole, Right Angle

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Solder

UL94 V-0

N3793-6003RB

Shrouded - 4 Wall

200 µin

5.08 µm

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

3.94 mm

0.155 "

0.68 in

17.27 mm

Push-Pull

Tin

All

Through Hole

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Solder

UL94 V-0

0.695 in

17.65 mm

N3793-6202RB

Shrouded - 4 Wall

200 µin

5.08 µm

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

2.84 mm

0.112 in

0.68 in

17.27 mm

Latch Lock/Eject Hooks, Short

Tin

All

Through Hole

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Solder

UL94 V-0

0.652 in

16.56 mm

N3793-6202

Shrouded - 4 Wall

200 µin

5.08 µm

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

2.84 mm

0.112 in

0.68 in

17.27 mm

Latch Lock/Eject Hooks, Short

Tin-Lead

All

Through Hole

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Solder

UL94 V-0

0.652 in

16.56 mm

N3793-1203RB

Shrouded - 3 Wall

200 µin

5.08 µm

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

3.94 mm

0.155 "

0.31 in

7.87 mm

Latch Lock/Eject Hooks, Short

Tin

All

Through Hole, Right Angle

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Solder

UL94 V-0

N3793-5002RB

Shrouded - 4 Wall

200 µin

5.08 µm

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

2.84 mm

0.112 in

0.34 in

8.64 mm

Push-Pull

Tin

All

Through Hole, Right Angle

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Solder

UL94 V-0

N3793-5302RB

Shrouded - 4 Wall

200 µin

5.08 µm

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

2.84 mm

0.112 in

0.34 in

8.64 mm

Latch Lock/Eject Hooks, Long

Tin

All

Through Hole, Right Angle

Black

Square

Header

0.1 in

2.54 mm

6.1 mm

0.24 in

2.54 mm

0.1 in

Copper Alloy

Board to Board, Cable

30 Áin

0.76 Ám

Male Pin

1.75 A

Gold

105 ░C

-55 °C

Solder

UL94 V-0

Part	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Mounting Type	Insulation Color	Contact Shape	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Rows	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]
3M N3793-5502	Shrouded - 4 Wall	200 µin	5.08 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.84 mm	0.112 in	0.34 in	8.64 mm	Latch Lock/Eject Hooks, Short	Tin-Lead	All	10	Through Hole, Right Angle	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Solder	2	UL94 V-0
3M N3793-6302RB	Shrouded - 4 Wall	200 µin	5.08 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.84 mm	0.112 in	0.68 in	17.27 mm	Latch Lock/Eject Hooks, Long	Tin	All	10	Through Hole	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Solder	2	UL94 V-0	0.652 in	16.56 mm
3M N3793-600T02RB	Shrouded - 4 Wall	300 µin	7.62 µm	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	4.45 mm	0.175 in	0.68 in	17.27 mm	Push-Pull	Tin	All	10	Through Hole	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Press-Fit, Solder	2	UL94 V-0			0.715 "	18.16 mm
3M N3793-5603	Shrouded - 4 Wall	200 µin	5.08 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	3.94 mm	0.155 "	0.34 in	8.64 mm	Latch Lock/Eject Hooks, Long	Tin-Lead	All	10	Through Hole, Right Angle	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Solder	2	UL94 V-0
3M N3793-6003RB	Shrouded - 4 Wall	200 µin	5.08 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	3.94 mm	0.155 "	0.68 in	17.27 mm	Push-Pull	Tin	All	10	Through Hole	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Solder	2	UL94 V-0	0.695 in	17.65 mm
3M N3793-6202RB	Shrouded - 4 Wall	200 µin	5.08 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.84 mm	0.112 in	0.68 in	17.27 mm	Latch Lock/Eject Hooks, Short	Tin	All	10	Through Hole	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Solder	2	UL94 V-0	0.652 in	16.56 mm
3M N3793-6202	Shrouded - 4 Wall	200 µin	5.08 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.84 mm	0.112 in	0.68 in	17.27 mm	Latch Lock/Eject Hooks, Short	Tin-Lead	All	10	Through Hole	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Solder	2	UL94 V-0	0.652 in	16.56 mm
3M N3793-1203RB	Shrouded - 3 Wall	200 µin	5.08 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	3.94 mm	0.155 "	0.31 in	7.87 mm	Latch Lock/Eject Hooks, Short	Tin	All	10	Through Hole, Right Angle	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Solder	2	UL94 V-0
3M N3793-5002RB	Shrouded - 4 Wall	200 µin	5.08 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.84 mm	0.112 in	0.34 in	8.64 mm	Push-Pull	Tin	All	10	Through Hole, Right Angle	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Solder	2	UL94 V-0
3M N3793-5302RB	Shrouded - 4 Wall	200 µin	5.08 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.84 mm	0.112 in	0.34 in	8.64 mm	Latch Lock/Eject Hooks, Long	Tin	All	10	Through Hole, Right Angle	Black	Square	Header	0.1 in	2.54 mm	6.1 mm	0.24 in	2.54 mm	0.1 in	Copper Alloy	Board to Board, Cable	30 Áin	0.76 Ám	Male Pin	1.75 A	Gold	105 ░C	-55 °C	Solder	2	UL94 V-0
