N3793-6302RB

Active

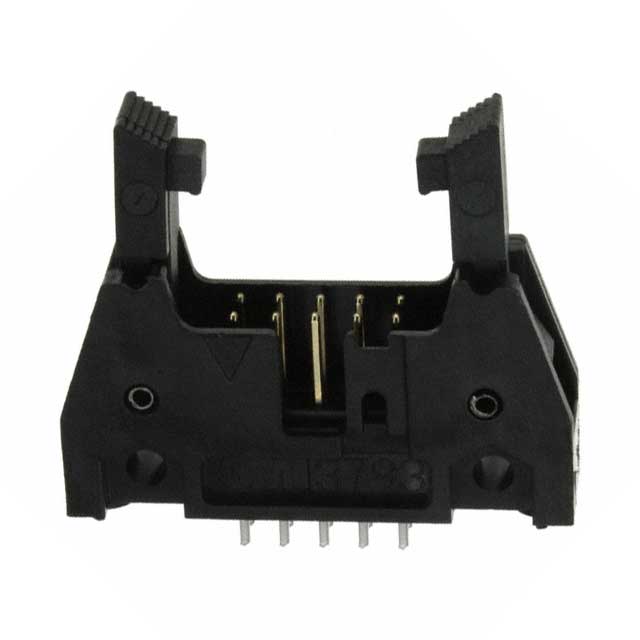

2 TIN 2.54MM -55℃~+105℃ COPPER ALLOY STRAIGHT PLUGIN WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +1

N3793-6302RB

Active

2 TIN 2.54MM -55℃~+105℃ COPPER ALLOY STRAIGHT PLUGIN WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.28
		10	$ 1.94
		450	$ 1.48
		900	$ 1.41
		1350	$ 1.37
		5400	$ 1.24
LCSC	Piece	1	$ 0.99
		200	$ 0.40
		450	$ 0.38
		900	$ 0.38
Newark	Each	1	$ 2.72
		10	$ 2.47
		25	$ 2.26
		50	$ 2.09
		100	$ 1.95
		250	$ 1.82
		500	$ 1.70
		1000	$ 1.60

Description

General part information

N3793 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Drawing EN

Datasheet

Specification	N3793-6302RB	N3793 Series

Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 15.49 mm
Contact Length - Post	0.112 in	0.112 - 0.61 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long, Push-Pull
Insulation Color	Black	Black
Insulation Height	17.27 mm	7.87 - 17.27 mm
Insulation Height	0.68 in	0.31 - 0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.652 in	0.652 - 1.15 in
Overall Contact Length	16.56 mm	16.56 - 29.21 mm
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Press-Fit, Kinked Pin, Solder, Wire Wrap

Part

Shrouding

Contact Finish Thickness - Post

Insulation Material

Contact Length - Post

Insulation Height

Fastening Type

Contact Finish - Post

Number of Positions Loaded

Number of Positions

Mounting Type

Insulation Color

Contact Shape

Connector Type

Pitch - Mating

Contact Length - Mating

Contact Length - Mating [x]

Row Spacing - Mating [x]

Contact Material

Style

Contact Finish Thickness - Mating

Contact Type

Current Rating (Amps)

Contact Finish - Mating

Operating Temperature [Max]

Operating Temperature [Min]

Termination

Number of Rows

Material Flammability Rating

Overall Contact Length

Overall Contact Length [x]
