887-009-559-612

Active

EDAC Inc.

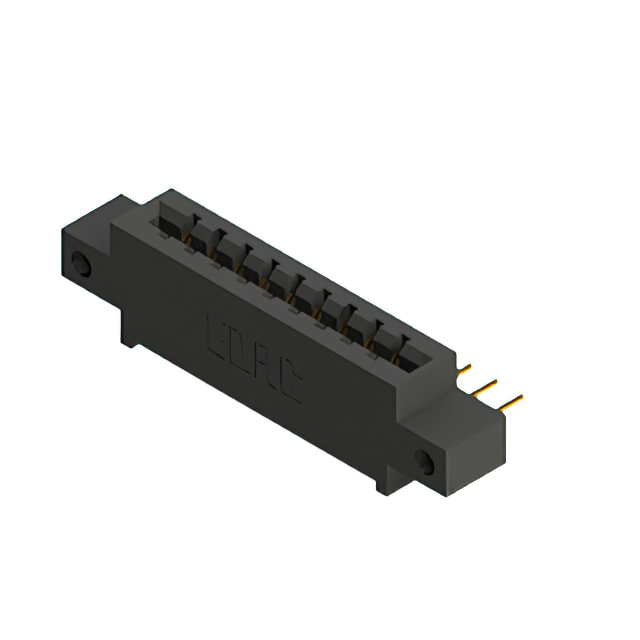

CARD EDGE CONNECTOR, 9 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-009-559-612

Active

EDAC Inc.

CARD EDGE CONNECTOR, 9 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-009-559-612

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions/Bay/Row [custom]	9
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

887-009 Series

...

Part	Contact Finish	Material - Insulation	Color	Gender	Termination Rows	Flange Feature	Contact Material	Pitch [x]	Pitch [x]	Contact Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Read Out	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 887-009-544-107	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 887-009-524-607	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	M3 Threaded Insert Top Mount Opening	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 887-009-540-603	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	Floating Bobbin Top Mount Opening	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	0.116 in
EDAC Inc. 887-009-559-612	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	Side Mount Opening Unthreaded	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole Right Angle	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in			3.25 mm	0.128 in
EDAC Inc. 887-009-500-107	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 887-009-523-612	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	Side Mount Opening Unthreaded	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in			3.25 mm	0.128 in
EDAC Inc. 887-009-540-604	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	Top Mount Opening Unthreaded	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	0.156 in
EDAC Inc. 887-009-558-603	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	Floating Bobbin Top Mount Opening	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole Right Angle	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	0.116 in
EDAC Inc. 887-009-524-108	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 887-009-521-108	Gold	Polyphenylene Sulfide (PPS)	Black	Female	1	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	0.156 in	3.96 mm	Cantilever	1	10 Áin	0.25 Ám	Through Hole	9	Single	9	125 °C	-40 °C	Non Specified - Single Edge	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in
