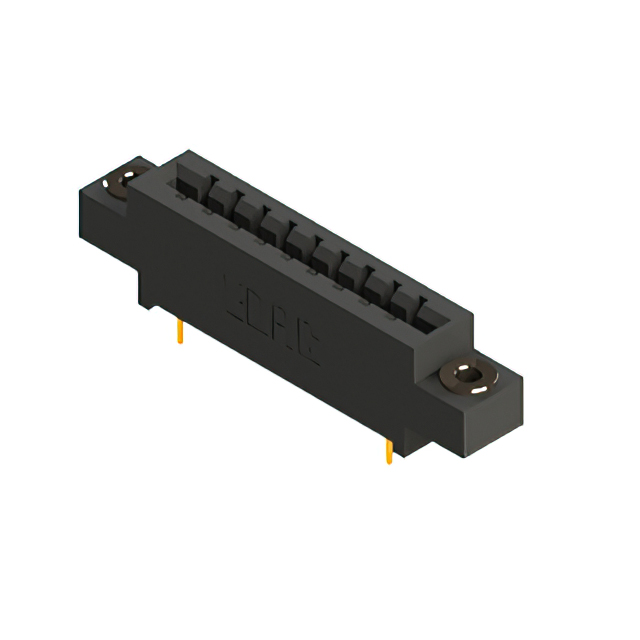

887-009-558-603
ActiveEDAC Inc.
CONN EDGE SGL FMALE 9POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-009-558-603
ActiveEDAC Inc.
CONN EDGE SGL FMALE 9POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-009-558-603 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
887-009 Series
...
| Part | Contact Finish | Material - Insulation | Color | Gender | Termination Rows | Flange Feature | Contact Material | Pitch [x] | Pitch [x] | Contact Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions | Read Out | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | M3 Threaded Insert Top Mount Opening | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | Floating Bobbin Top Mount Opening | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | ||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | Side Mount Opening Unthreaded | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole Right Angle | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | Side Mount Opening Unthreaded | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | Top Mount Opening Unthreaded | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | ||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | Floating Bobbin Top Mount Opening | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole Right Angle | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | ||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Gold | Polyphenylene Sulfide (PPS) | Black | Female | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 0.156 in | 3.96 mm | Cantilever | 1 | 10 Áin | 0.25 Ám | Through Hole | 9 | Single | 9 | 125 °C | -40 °C | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 53.18 | |
Description
General part information
887-009 Series
9 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
