165X11649X

Active

Amphenol CONEC

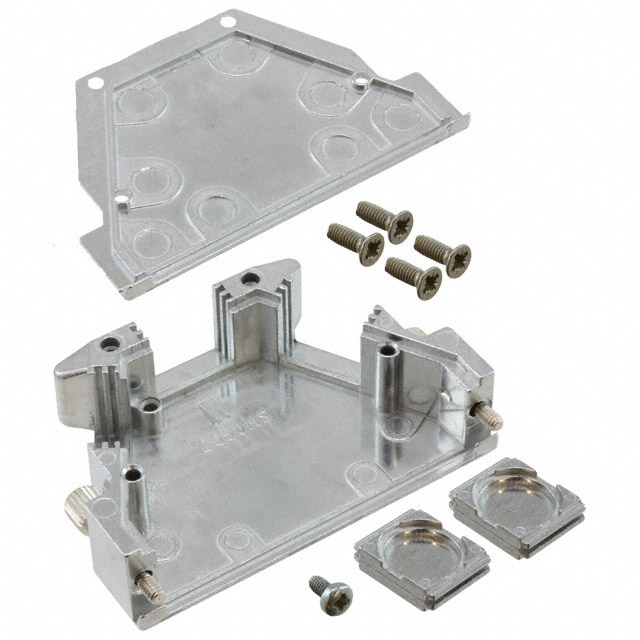

CONN BACKSHELL 50P 45/180DEG SHD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

165X11649X

Active

Amphenol CONEC

CONN BACKSHELL 50P 45/180DEG SHD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	165X11649X

Accessory Type	Two Piece Backshell
Cable Exit	180 °, 45 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	50pos, HD78pos
Compatible Shell Size	D
Features	Mating Screws 4-40
Hardware	Assembly Hardware
Material	Metal, Zinc
Number of Positions	50
Primary Material	Metal
Shielding	Shielded

165X116 Series

Part	Plating	Compatible Shell Size	Hardware	Primary Material	Cable Type	Color	Compatible D-Sub Size	Shielding	Features	Accessory Type	Cable Exit	Material	Number of Positions	Cable Exit
Amphenol CONEC 165X11679X	Nickel	B	Assembly Hardware	Metal	Round	Silver	25pos HD44pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 ° 180 °	Metal Zinc
Amphenol CONEC 165X11659XE	Nickel	E	Assembly Hardware	Metal	Round	Silver	9pos HD15pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 °	Metal Zinc	9
Amphenol CONEC 165X11629XE	Nickel	B	Assembly Hardware	Metal	Round	Silver	25pos HD44pos	Shielded	IP20 Mating Screws 4-40	Two Piece Backshell	45 ° 180 °	Zinc Die Cast
Amphenol CONEC 165X11649X		D	Assembly Hardware	Metal	Round	Silver	50pos HD78pos	Shielded	Mating Screws 4-40	Two Piece Backshell	45 ° 180 °	Metal Zinc	50
Amphenol CONEC 165X11699XE	Nickel	D	Assembly Hardware	Metal	Round	Silver	50pos HD78pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 ° 180 °	Metal Zinc	50
Amphenol CONEC 165X11619XE	Nickel	A	Assembly Hardware	Metal	Round	Silver	15pos HD26pos	Shielded	Mating Screws 4-40	Two Piece Backshell		Metal Zinc	15	180° 90°
Amphenol CONEC 165X11669XE	Nickel	A	Assembly Hardware	Metal	Round	Silver	15pos HD26pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 ° 180 °	Metal Zinc	15
Amphenol CONEC 165X11619X	Nickel	A	Assembly Hardware	Metal	Round	Silver	15pos HD26pos	Shielded	Mating Screws 4-40	Two Piece Backshell		Metal Zinc	15	180° 90°
Amphenol CONEC 165X11669X	Nickel	A	Assembly Hardware	Metal	Round	Silver	15pos HD26pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 ° 180 °	Metal Zinc	15
Amphenol CONEC 165X11609X	Nickel	E	Assembly Hardware	Metal	Round	Silver	9pos HD15pos	Shielded	Mating Screws 4-40	Two Piece Backshell	180 °	Metal Zinc	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.42

Description

General part information

165X116 Series

50 Position Two Piece Backshell Connector Silver 45°, 180° Shielded
