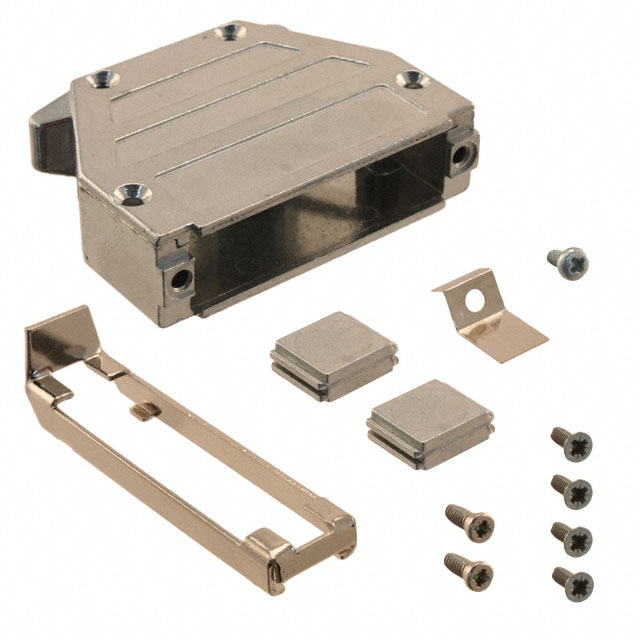

165X11679X

Active

Amphenol CONEC

CONN BACKSHELL 25P 40/180DEG SHD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

165X11679X

Active

Amphenol CONEC

CONN BACKSHELL 25P 40/180DEG SHD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	165X11679X

Accessory Type	Two Piece Backshell
Cable Exit	40 °, 180 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	HD44pos, 25pos
Compatible Shell Size	B
Features	Slide Lock, Spring
Hardware	Assembly Hardware
Material	Metal, Zinc
Plating	Nickel
Primary Material	Metal
Shielding	Shielded

165X116 Series

Part	Plating	Compatible Shell Size	Hardware	Primary Material	Cable Type	Color	Compatible D-Sub Size	Shielding	Features	Accessory Type	Cable Exit	Material	Number of Positions	Cable Exit
Amphenol CONEC 165X11679X	Nickel	B	Assembly Hardware	Metal	Round	Silver	25pos HD44pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 ° 180 °	Metal Zinc
Amphenol CONEC 165X11659XE	Nickel	E	Assembly Hardware	Metal	Round	Silver	9pos HD15pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 °	Metal Zinc	9
Amphenol CONEC 165X11629XE	Nickel	B	Assembly Hardware	Metal	Round	Silver	25pos HD44pos	Shielded	IP20 Mating Screws 4-40	Two Piece Backshell	45 ° 180 °	Zinc Die Cast
Amphenol CONEC 165X11649X		D	Assembly Hardware	Metal	Round	Silver	50pos HD78pos	Shielded	Mating Screws 4-40	Two Piece Backshell	45 ° 180 °	Metal Zinc	50
Amphenol CONEC 165X11699XE	Nickel	D	Assembly Hardware	Metal	Round	Silver	50pos HD78pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 ° 180 °	Metal Zinc	50
Amphenol CONEC 165X11619XE	Nickel	A	Assembly Hardware	Metal	Round	Silver	15pos HD26pos	Shielded	Mating Screws 4-40	Two Piece Backshell		Metal Zinc	15	180° 90°
Amphenol CONEC 165X11669XE	Nickel	A	Assembly Hardware	Metal	Round	Silver	15pos HD26pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 ° 180 °	Metal Zinc	15
Amphenol CONEC 165X11619X	Nickel	A	Assembly Hardware	Metal	Round	Silver	15pos HD26pos	Shielded	Mating Screws 4-40	Two Piece Backshell		Metal Zinc	15	180° 90°
Amphenol CONEC 165X11669X	Nickel	A	Assembly Hardware	Metal	Round	Silver	15pos HD26pos	Shielded	Slide Lock Spring	Two Piece Backshell	40 ° 180 °	Metal Zinc	15
Amphenol CONEC 165X11609X	Nickel	E	Assembly Hardware	Metal	Round	Silver	9pos HD15pos	Shielded	Mating Screws 4-40	Two Piece Backshell	180 °	Metal Zinc	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 57.36
		10	$ 52.64
		25	$ 50.62
		50	$ 48.93
		100	$ 46.23

Description

General part information

165X116 Series

25 Position Two Piece Backshell Connector Silver 40°, 180° Shielded
