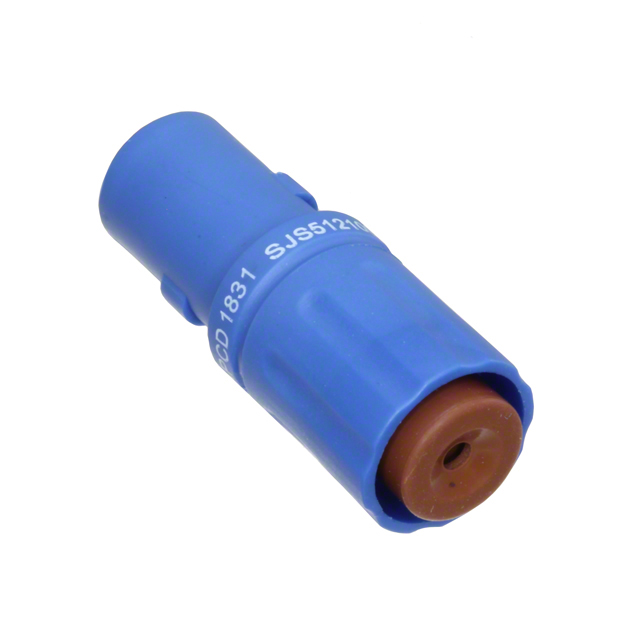

SJS512100

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 1POS INLINE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 1POS INLINE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Circular Connector Plug Housing Free Hanging (In-Line)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SJS512100	SJS51 Series

Connector Type	Plug Housing	Plug Housing, Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	12	12
Contact Type	Crimp	Crimp
Fastening Type	Detent Lock	Detent Lock
Housing Color	Blue	Blue
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	1	1
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	7	7
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets, For Male Pins

CONN PLUG HSG FMALE 1POS INLINE

Part	Shell Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Note	Mounting Type	Material Flammability Rating	Contact Size	Shell Size - Insert	Ingress Protection	Housing Color	Fastening Type	Contact Type	Type	Contact Shape	Number of Positions
AMPHENOL PCD SJS512100	Polyamide (PA66), Nylon 6/6	Unshielded	155 °C	-65 ░C	Plug Housing	Contacts Not Included	Free Hanging (In-Line)	UL94 V-0	12	7	IP67 - Dust Tight, Waterproof	Blue	Detent Lock	Crimp	For Female Sockets	Circular	1
AMPHENOL PCD SJS512200	Polyamide (PA66), Nylon 6/6	Unshielded	155 °C	-65 ░C	Receptacle Housing	Contacts Not Included	Free Hanging (In-Line)	UL94 V-0	12	7	IP67 - Dust Tight, Waterproof	Blue	Detent Lock	Crimp	For Male Pins	Circular	1
