SJS512200

Active

AMPHENOL PCD

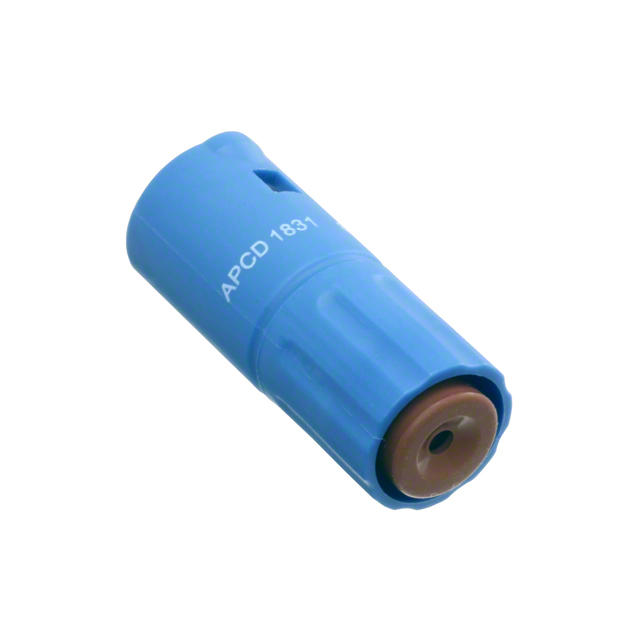

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, CABLE MOUNT RECEPTACLE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, CABLE MOUNT RECEPTACLE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJS512200	SJS51 Series

Connector Type	Receptacle Housing	Plug Housing, Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	12	12
Contact Type	Crimp	Crimp
Fastening Type	Detent Lock	Detent Lock
Housing Color	Blue	Blue
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	1	1
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	7	7
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Female Sockets, For Male Pins

CONN PLUG HSG FMALE 1POS INLINE

Part	Shell Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Note	Mounting Type	Material Flammability Rating	Contact Size	Shell Size - Insert	Ingress Protection	Housing Color	Fastening Type	Contact Type	Type	Contact Shape	Number of Positions
AMPHENOL PCD SJS512100	Polyamide (PA66), Nylon 6/6	Unshielded	155 °C	-65 ░C	Plug Housing	Contacts Not Included	Free Hanging (In-Line)	UL94 V-0	12	7	IP67 - Dust Tight, Waterproof	Blue	Detent Lock	Crimp	For Female Sockets	Circular	1
AMPHENOL PCD SJS512200	Polyamide (PA66), Nylon 6/6	Unshielded	155 °C	-65 ░C	Receptacle Housing	Contacts Not Included	Free Hanging (In-Line)	UL94 V-0	12	7	IP67 - Dust Tight, Waterproof	Blue	Detent Lock	Crimp	For Male Pins	Circular	1
