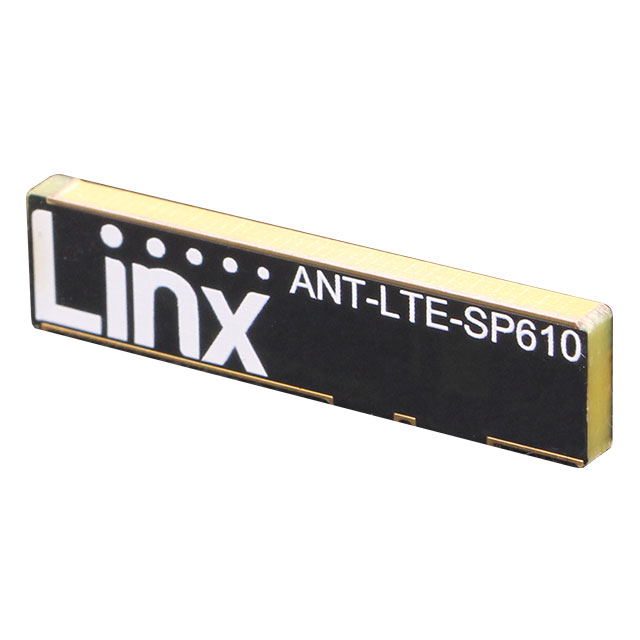

ANT-LTE-SP610-T

Active

TE Connectivity Linx

RF ANT LTE 698MHZ-2.7GHZ CHIP SL

Deep-Dive with AI

Search across all available documentation for this part.

ANT-LTE-SP610-T

Active

TE Connectivity Linx

RF ANT LTE 698MHZ-2.7GHZ CHIP SL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-LTE-SP610-T

Antenna Type	Chip
Applications	GSM, Cellular, LTE, NB-IoT, LTE-M, 4G, CAT-M1, UMTS, LPWA
Frequency (Center/Band)	2.6 GHz, 1.9 GHz, 700 MHz, 850 MHz, 2.1 GHz, 900 MHz, 1.8 GHz, 2.4 GHz
Frequency Group	Wide Band
Frequency Range [Max]	2.69 GHz, 960 MHz, 2.4 GHz, 2.17 GHz
Frequency Range [Min]	2.49 GHz, 698 MHz, 1.71 GHz, 2.3 GHz
Gain	4.9 dBi, 5.3 dBi, 2.7 dBi, 5.1 dBic
Height (Max)	2.8 mm
Height (Max) [Max]	0.11 in
Mounting Type	Surface Mount
Number of Bands	4
Power - Max [Max]	10 W
Return Loss	-5.8 dB, -5.3 dB, -3.5 dB, -6 dB
RF Family/Standard	Cellular
Termination	Solder

ANT-LTE Series

Part	Frequency (Center/Band)	RF Family/Standard	Antenna Type	Features	Features	Number of Bands	Power - Max [Max]	Gain	Frequency Group	VSWR	Termination	Frequency Range [Min]	Frequency Range [Max]	Return Loss	Mounting Type	Height (Max) [Max]	Height (Max)	Applications	Height (Max) [Max]	Ingress Protection
TE Connectivity Linx ANT-LTE-RPC-UFL	1.575 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 3.3 GHz 3.4 GHz 3.5 GHz 3.6 GHz 600 MHz 700 MHz 800 MHz 850 MHz 900 MHz	Cellular Navigation	PCB Trace	Cable	100 mm	7	2 W	3.1 dBi 3.6 dBi 4.6 dBi 4.9 dBi 5 dBi 5.1 dBic 6.3 dBi	Wide Band	1.4 1.8 2.1 2.4 2.5 4.1	I-PEX MHF1 U.FL (UMCC)	600 MHz	3.8 GHz	-15.6 dB -10.9 dB -9 dB -7.7 dB -7.4 dB -4.3 dB	Adhesive	0.031 in	0.8 mm
TE Connectivity Linx ANT-LTE-MON-SMA	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 3.4 GHz 3.5 GHz 3.6 GHz 3.8 GHz 700 MHz 800 MHz 850 MHz 900 MHz 3700 MHz	Cellular	Tilt/Swivel Whip			6	15 W		Wide Band	2.5 2.75 3.5 4.5		1.71 GHz 2.3 GHz 2.5 GHz 3.4 GHz 698 MHz 3600 MHz	2.17 GHz 2.4 GHz 2.7 GHz 3.6 GHz 3.8 GHz 960 MHz		Connector Mount			2G 3G 4G CAT-M1 Cellular LTE NB-IoT
TE Connectivity Linx ANT-LTE-WS-SMA	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Cellular	Blade Tilt			4	15 W	3.1 dBi 4 dBi 5.8 dB	Wide Band	2 2.5		1.71 GHz 2.3 GHz 2.5 GHz 698 MHz	2.17 GHz 2.4 GHz 2.7 GHz 960 MHz		Connector Mount	5.366 in		2G 3G 4G CAT-M1 Cellular IoT LTE NB-IoT	136.3 mm
TE Connectivity Linx ANT-LTE-SP610-T	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	Cellular	Chip			4	10 W	2.7 dBi 4.9 dBi 5.1 dBic 5.3 dBi	Wide Band		Solder	1.71 GHz 2.3 GHz 2.49 GHz 698 MHz	2.17 GHz 2.4 GHz 2.69 GHz 960 MHz	-6 dB -5.8 dB -5.3 dB -3.5 dB	Surface Mount	0.11 in	2.8 mm	4G CAT-M1 Cellular GSM LPWA LTE LTE-M NB-IoT UMTS
TE Connectivity Linx ANT-LTE-VDP-2000-SMA	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 700 MHz 850 MHz 900 MHz	Cellular	Flat Bar	Cable - 2m		3	10 W	3.25 dBi 3.5 dBi 4.5 dBi	Wide Band	1.25 1.3 1.35 1.75		1.71 GHz 2.3 GHz 2.5 GHz 698 MHz	2.17 GHz 2.4 GHz 2.7 GHz 960 MHz		Adhesive	0.264 in	6.71 mm	3G 4G CAT-M1 Cellular LTE NB-IoT		IP67
TE Connectivity Linx ANT-LTE-CER-T	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 2.7 GHz 700 MHz 850 MHz 900 MHz	Cellular	Chip			4		4 dBi	Wide Band	2.5 3.2 4	Solder	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz	2.17 GHz 2.4 GHz 2.7 GHz 960 MHz		Surface Mount	0.203 in	5.15 mm	3G 4G CAT-M1 Cellular LTE NB-IoT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.22
		10	$ 3.49
		25	$ 3.04
		100	$ 2.54
		250	$ 2.29
		500	$ 2.14
	Digi-Reel®	1	$ 5.22
		10	$ 3.49
		25	$ 3.04
		100	$ 2.54
		250	$ 2.29
		500	$ 2.14
	Tape & Reel (TR)	1000	$ 2.19

Description

General part information

ANT-LTE Series

RF ANTENNA CAT-M1, Cellular, GSM, LTE, LTE-M, LPWA, NB-IOT, UMTS, 4G Chip Solder Surface Mount
