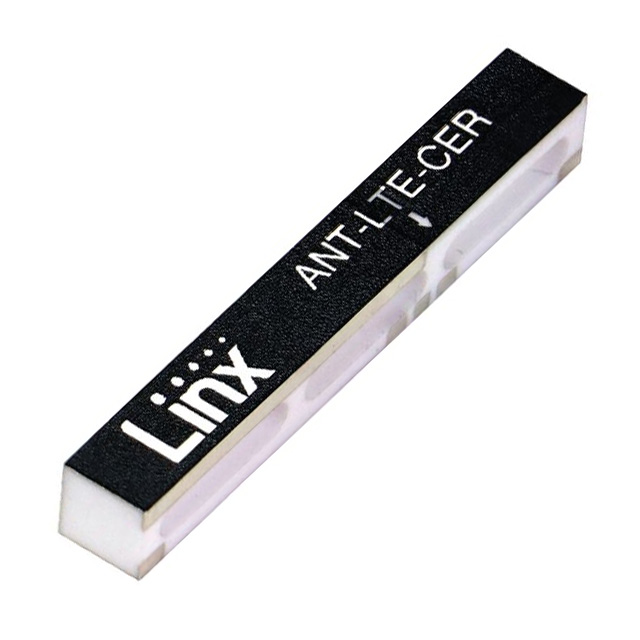

ANT-LTE-CER-T
ActiveTE Connectivity Linx
RF ANT 829MHZ/1.94GHZ CHIP SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-LTE-CER-T
ActiveTE Connectivity Linx
RF ANT 829MHZ/1.94GHZ CHIP SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-LTE-CER-T |
|---|---|
| Antenna Type | Chip |
| Applications | 4G, LTE, 3G, NB-IoT, Cellular, CAT-M1 |
| Frequency (Center/Band) | 2.7 GHz, 2.4 GHz, 850 MHz, 1.9 GHz, 900 MHz, 700 MHz, 1.7 GHz, 2.1 GHz, 1.8 GHz, 2.6 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.17 GHz, 960 MHz, 2.4 GHz, 2.7 GHz |
| Frequency Range [Min] | 2.3 GHz, 2.5 GHz, 1.71 GHz, 698 MHz |
| Gain | 4 dBi |
| Height (Max) | 5.15 mm |
| Height (Max) [Max] | 0.203 in |
| Mounting Type | Surface Mount |
| Number of Bands | 4 |
| RF Family/Standard | Cellular |
| Termination | Solder |
| VSWR | 3.2, 4, 2.5 |
ANT-LTE Series
| Part | Frequency (Center/Band) | RF Family/Standard | Antenna Type | Features | Features | Number of Bands | Power - Max [Max] | Gain | Frequency Group | VSWR | Termination | Frequency Range [Min] | Frequency Range [Max] | Return Loss | Mounting Type | Height (Max) [Max] | Height (Max) | Applications | Height (Max) [Max] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Linx | 1.575 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 3.3 GHz 3.4 GHz 3.5 GHz 3.6 GHz 600 MHz 700 MHz 800 MHz 850 MHz 900 MHz | Cellular Navigation | PCB Trace | Cable | 100 mm | 7 | 2 W | 3.1 dBi 3.6 dBi 4.6 dBi 4.9 dBi 5 dBi 5.1 dBic 6.3 dBi | Wide Band | 1.4 1.8 2.1 2.4 2.5 4.1 | I-PEX MHF1 U.FL (UMCC) | 600 MHz | 3.8 GHz | -15.6 dB -10.9 dB -9 dB -7.7 dB -7.4 dB -4.3 dB | Adhesive | 0.031 in | 0.8 mm | |||
TE Connectivity Linx | 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 3.4 GHz 3.5 GHz 3.6 GHz 3.8 GHz 700 MHz 800 MHz 850 MHz 900 MHz 3700 MHz | Cellular | Tilt/Swivel Whip | 6 | 15 W | Wide Band | 2.5 2.75 3.5 4.5 | 1.71 GHz 2.3 GHz 2.5 GHz 3.4 GHz 698 MHz 3600 MHz | 2.17 GHz 2.4 GHz 2.7 GHz 3.6 GHz 3.8 GHz 960 MHz | Connector Mount | 2G 3G 4G CAT-M1 Cellular LTE NB-IoT | |||||||||
TE Connectivity Linx | 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 700 MHz 800 MHz 850 MHz 900 MHz | Cellular | Blade Tilt | 4 | 15 W | 3.1 dBi 4 dBi 5.8 dB | Wide Band | 2 2.5 | 1.71 GHz 2.3 GHz 2.5 GHz 698 MHz | 2.17 GHz 2.4 GHz 2.7 GHz 960 MHz | Connector Mount | 5.366 in | 2G 3G 4G CAT-M1 Cellular IoT LTE NB-IoT | 136.3 mm | ||||||
TE Connectivity Linx | 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz | Cellular | Chip | 4 | 10 W | 2.7 dBi 4.9 dBi 5.1 dBic 5.3 dBi | Wide Band | Solder | 1.71 GHz 2.3 GHz 2.49 GHz 698 MHz | 2.17 GHz 2.4 GHz 2.69 GHz 960 MHz | -6 dB -5.8 dB -5.3 dB -3.5 dB | Surface Mount | 0.11 in | 2.8 mm | 4G CAT-M1 Cellular GSM LPWA LTE LTE-M NB-IoT UMTS | |||||
TE Connectivity Linx | 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.4 GHz 2.5 GHz 2.6 GHz 2.7 GHz 700 MHz 850 MHz 900 MHz | Cellular | Flat Bar | Cable - 2m | 3 | 10 W | 3.25 dBi 3.5 dBi 4.5 dBi | Wide Band | 1.25 1.3 1.35 1.75 | 1.71 GHz 2.3 GHz 2.5 GHz 698 MHz | 2.17 GHz 2.4 GHz 2.7 GHz 960 MHz | Adhesive | 0.264 in | 6.71 mm | 3G 4G CAT-M1 Cellular LTE NB-IoT | IP67 | ||||
TE Connectivity Linx | 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 2.7 GHz 700 MHz 850 MHz 900 MHz | Cellular | Chip | 4 | 4 dBi | Wide Band | 2.5 3.2 4 | Solder | 1.71 GHz 2.3 GHz 2.5 GHz 698 MHz | 2.17 GHz 2.4 GHz 2.7 GHz 960 MHz | Surface Mount | 0.203 in | 5.15 mm | 3G 4G CAT-M1 Cellular LTE NB-IoT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.82 | |
| Digi-Reel® | 1 | $ 2.82 | ||
| Tape & Reel (TR) | 450 | $ 3.11 | ||
| 900 | $ 2.96 | |||
| 1350 | $ 2.83 | |||
Description
General part information
ANT-LTE Series
RF ANTENNA CAT-M1, Cellular, LTE, NB-IOT, 3G, 4G Chip Solder Surface Mount
