BQ51013ARHLR
ActiveINTEGRATED WIRELESS POWER RECEIVER SOLUTION, QI (WIRELESS POWER CONSORTIUM) COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
BQ51013ARHLR
ActiveINTEGRATED WIRELESS POWER RECEIVER SOLUTION, QI (WIRELESS POWER CONSORTIUM) COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ51013ARHLR | BQ51013A Series |
|---|---|---|
| Applications | Wireless Power Receiver | Wireless Power Receiver |
| Current - Supply [custom] | 1.5 A | 1.5 A |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | 0 °C | 0 °C |

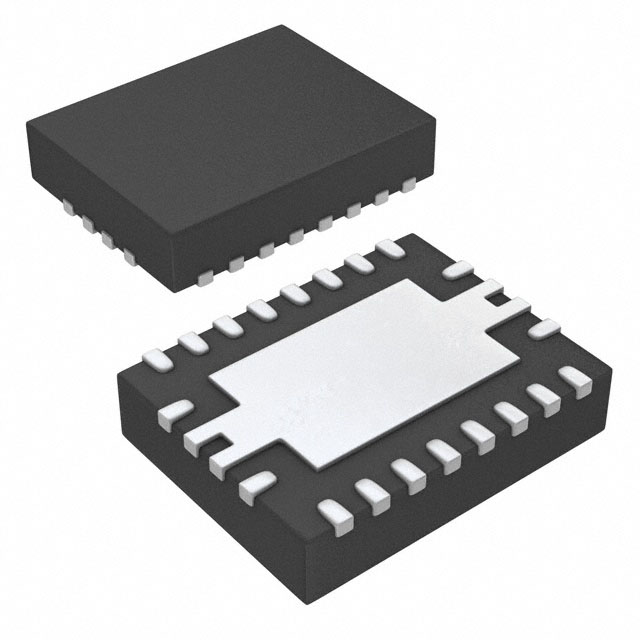

| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) | 28-DSBGA, 20-VQFN (3.5x4.5) |
| Voltage - Supply [Max] | 10 V | 10 V |
| Voltage - Supply [Min] | 4 V | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.84 | |
| 10 | $ 4.32 | |||
| 25 | $ 3.89 | |||
| 100 | $ 3.54 | |||
| 250 | $ 3.20 | |||
| 500 | $ 2.87 | |||
| 1000 | $ 2.42 | |||
| Digi-Reel® | 1 | $ 4.84 | ||
| 10 | $ 4.32 | |||
| 25 | $ 3.89 | |||
| 100 | $ 3.54 | |||
| 250 | $ 3.20 | |||
| 500 | $ 2.87 | |||
| 1000 | $ 2.42 | |||
| Tape & Reel (TR) | 3000 | $ 2.30 | ||
| Texas Instruments | LARGE T&R | 1 | $ 3.97 | |
| 100 | $ 3.48 | |||
| 250 | $ 2.44 | |||
| 1000 | $ 1.97 | |||
BQ51013A Series
Integrated Wireless power Receiver Solution, Qi (Wireless power Consortium) Compliant
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Current - Supply [custom] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ51013AYFPT | Surface Mount | 0 °C | 125 ¯C | Wireless Power Receiver | 4 V | 10 V | 28-DSBGA | 1.5 A | |
Texas Instruments BQ51013ARHLT | Surface Mount | 0 °C | 125 ¯C | Wireless Power Receiver | 4 V | 10 V | 20-VQFN (3.5x4.5) | 1.5 A | 20-VFQFN Exposed Pad |
Texas Instruments BQ51013AYFPR | Surface Mount | 0 °C | 125 ¯C | Wireless Power Receiver | 4 V | 10 V | 28-DSBGA | 1.5 A | |
Texas Instruments BQ51013ARHLR | Surface Mount | 0 °C | 125 ¯C | Wireless Power Receiver | 4 V | 10 V | 20-VQFN (3.5x4.5) | 1.5 A | 20-VFQFN Exposed Pad |
Description
General part information
BQ51013A Series
The bq5101x is an advanced, integrated, receiver IC for wireless power transfer in portable applications. The device provides the AC/DC power conversion while integrating the digital control required to comply with the Qi v1.0 communication protocol. Together with the bq500210 transmitter controller, the bq5101x enables a complete contact-less power transfer system for a wireless power supply solution. By using near-field inductive power transfer, the receiver coil embedded in the portable device receives the power transmitted by the transmitter coil via mutually coupled inductors. The AC signal from the receiver coil is then rectified and regulated to be used as a power supply for down-system electronics. Global feedback is established from the secondary to the transmitter in order to stabilize the power transfer process via back-scatter modulation. This feedback is established by using the Qi v1.0 communication protocol supporting up to 5 W applications.
The device integrates a low-impedance full synchronous rectifier, low-dropout regulator, digital control, and accurate voltage and current loops. The entire power stage (rectifier and LDO) use low resistive NMOS FET’s to ensures high efficiency and low power dissipation.
The bq5101x is an advanced, integrated, receiver IC for wireless power transfer in portable applications. The device provides the AC/DC power conversion while integrating the digital control required to comply with the Qi v1.0 communication protocol. Together with the bq500210 transmitter controller, the bq5101x enables a complete contact-less power transfer system for a wireless power supply solution. By using near-field inductive power transfer, the receiver coil embedded in the portable device receives the power transmitted by the transmitter coil via mutually coupled inductors. The AC signal from the receiver coil is then rectified and regulated to be used as a power supply for down-system electronics. Global feedback is established from the secondary to the transmitter in order to stabilize the power transfer process via back-scatter modulation. This feedback is established by using the Qi v1.0 communication protocol supporting up to 5 W applications.
