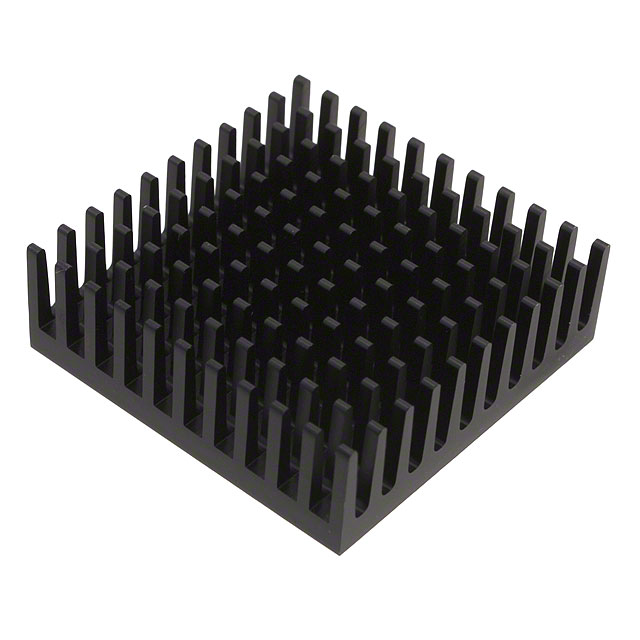

655-53AB

Active

Wakefield-Vette

HEATSINK CPU 40.6MM SQ H=.525"

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK CPU 40.6MM SQ H=.525"

Technical Specifications

Parameters and characteristics for this part

Specification	655-53AB

Attachment Method	Thermal Tape, Adhesive (Not Included)
Fin Height	13.27 mm
Fin Height	0.522 in
Length	1.6 in
Length	40.64 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	2 °C/W
Type	Top Mount
Width [x]	1.6 in
Width [x]	40.64 mm

Part	Width [x]	Width [x]	Material	Attachment Method	Length	Length	Fin Height	Fin Height	Shape	Package Cooled	Thermal Resistance @ Forced Air Flow	Material Finish	Type
Wakefield-Vette 655-53ABT6	1.6 in	40.64 mm	Aluminum	Thermal Tape Adhesive (Not Included)	1.6 in	40.64 mm	0.525 in	13.34 mm	Pin Fins Square	ASIC BGA CPU LGA	2 °C/W	Black Anodized	Top Mount
Wakefield-Vette 655-53AB	1.6 in	40.64 mm	Aluminum	Thermal Tape Adhesive (Not Included)	1.6 in	40.64 mm	0.522 in	13.27 mm	Pin Fins Square	ASIC BGA CPU LGA	2 °C/W	Black Anodized	Top Mount
Wakefield-Vette 655-53ABT5	1.6 in	40.64 mm	Aluminum	Thermal Tape Adhesive (Not Included)	1.6 in	40.64 mm	0.525 in	13.34 mm	Pin Fins Square	ASIC BGA CPU LGA	2 °C/W	Black Anodized	Top Mount
Wakefield-Vette 655-53ABT3	1.6 in	40.64 mm	Aluminum	Thermal Tape Adhesive (Not Included)	1.6 in	40.64 mm	0.525 in	13.34 mm	Pin Fins Square	ASIC BGA CPU LGA	2 °C/W	Black Anodized	Top Mount
Wakefield-Vette 655-53ABT4E	1.6 in	40.64 mm	Aluminum	Thermal Tape Adhesive (Not Included)	1.6 in	40.64 mm	0.525 in	13.34 mm	Pin Fins Square	ASIC BGA CPU LGA	2 °C/W	Black Anodized	Top Mount
Wakefield-Vette 655-53ABT1E	1.6 in	40.64 mm	Aluminum	Thermal Tape Adhesive (Not Included)	1.6 in	40.64 mm	0.525 in	13.34 mm	Pin Fins Square	ASIC BGA CPU LGA	2 °C/W	Black Anodized	Top Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum 4.0W @ 40°C Top Mount
