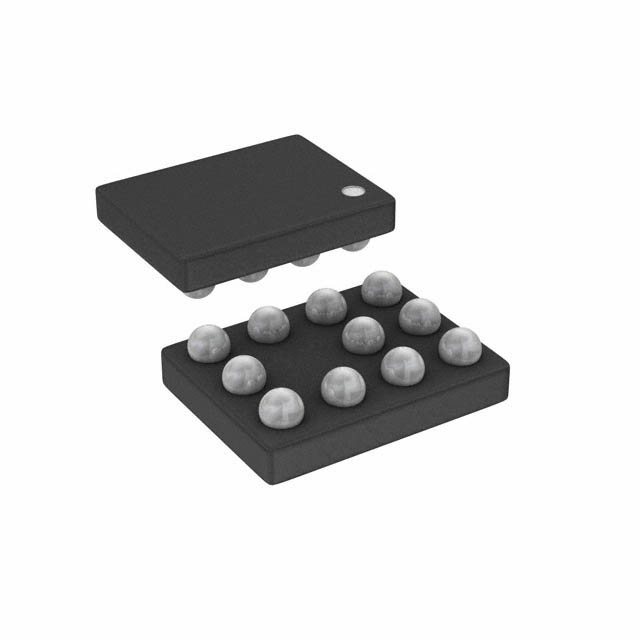

EMIF02-USB03F2
ActiveSTMicroelectronics
FILTER RC(PI) 33 OHM/20PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EMIF02-USB03F2
ActiveSTMicroelectronics
FILTER RC(PI) 33 OHM/20PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EMIF02-USB03F2 | EMIF02 Series |
|---|---|---|
| - | - | |
| Applications | USB | Data Lines for Mobile Devices, USB, Audio |
| Attenuation Value | - | 26 dB |
| Center / Cutoff Frequency | - | 900 MHz |
| ESD Protection | True | True |
| Filter Order | 2nd | 2nd |
| Filter Order | - | 3 |
| Height [z] | 0.7 mm | 0.55 - 0.76 mm |
| Height [z] | 0.028 in | 0.022 - 0.03 in |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Channels [custom] | 2 | 2 - 3 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - -30 °C |
| Package / Case | FCBGA, 11-WFBGA | 6-UFDFN, FCBGA, 8-WFBGA, 11-WFBGA, 5-WFBGA, 9-UFBGA, 6-WFBGA |
| Resistance - Channel (Ohms) | 33 Ohms | 25 - 470 Ohms |
| Resistance - Channel (Ohms) | - | 1.5k, 2.2k |
| Size / Dimension [x] | 0.076 in | 0.045 - 0.076 in |
| Size / Dimension [x] | 1.94 mm | 1.14 - 1.94 mm |
| Size / Dimension [y] | 0.057 in | 0.036 - 0.057 " |
| Size / Dimension [y] | 1.44 mm | 0.92 - 1.44 mm |
| Technology | RC (Pi) | RC (Pi), RC |
| Type | Low Pass | Low Pass |
| Values | 33 Ohms, 20 pF | 1.5 - 470 pF |
| Values | - | 830 - 1250 pF |
| Values | - | 2.2 - 25 kOhms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.56 | ||
| 10 | $ 0.45 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 5000 | $ 0.26 | ||
| 10000 | $ 0.25 | |||
| 15000 | $ 0.24 | |||
| 25000 | $ 0.23 | |||
| 35000 | $ 0.22 | |||
EMIF02 Series
EMI FILTER LOW PASS RC-CIRCUIT FLAT STYLE SMD T/R
| Part | Package / Case | Resistance - Channel (Ohms) | ESD Protection | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Number of Channels [custom] | Values | Mounting Type | Center / Cutoff Frequency | Height [z] | Height [z] | Technology | Attenuation Value | Filter Order | Resistance - Channel (Ohms) | Values [custom] | Values [custom] | Filter Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics EMIF02-1003M6 | 6-UFDFN | 100 Ohms | 0.039 " | 1 mm | 0.057 in | 1.45 mm | Low Pass | Data Lines for Mobile Devices | 85 °C | -40 °C | 2 | 30 pF, 100 Ohms | Surface Mount | 900 MHz | 0.024 in | 0.6 mm | RC (Pi) | 26 dB | 2nd | |||||
STMicroelectronics EMIF02-1003M6 | ||||||||||||||||||||||||
STMicroelectronics EMIF02-USB05C2 | 8-WFBGA, FCBGA | 33 Ohms | 0.036 in | 0.92 mm | 0.076 in | 1.92 mm | Low Pass | USB | 85 °C | -40 °C | 2 | 1.5 kOhms, 30 pF, 33 Ohms | Surface Mount | 0.03 in | 0.76 mm | RC (Pi) | 2nd | 1.5k | ||||||
STMicroelectronics EMIF02-MIC07F3 | 8-WFBGA, FCBGA | 25 Ohms | 0.046 in | 1.17 mm | 0.046 in | 1.17 mm | Low Pass | Audio | 85 °C | -40 °C | 2 | Surface Mount | 0.026 in | 0.65 mm | RC | 2.2k | 830 pF, 1250 pF | 2.2 kOhms, 25 Ohms | 3 | |||||
STMicroelectronics EMIF02-USB03F2 | 11-WFBGA, FCBGA | 33 Ohms | 0.057 in | 1.44 mm | 0.076 in | 1.94 mm | Low Pass | USB | 85 °C | -40 °C | 2 | 20 pF, 33 Ohms | Surface Mount | 0.028 in | 0.7 mm | RC (Pi) | 2nd | |||||||
STMicroelectronics EMIF02-MIC03F2 | 5-WFBGA, FCBGA | 68 Ohms | 0.042 in | 1.07 mm | 0.058 in | 1.47 mm | Low Pass | Data Lines for Mobile Devices | 85 °C | -40 °C | 2 | 68 Ohms, 100 pF | Surface Mount | 0.028 in | 0.7 mm | RC (Pi) | 2nd | |||||||
STMicroelectronics EMIF02-USB04F3 | ||||||||||||||||||||||||
STMicroelectronics EMIF02-MIC03F2 | ||||||||||||||||||||||||
STMicroelectronics EMIF02-1003M6 | ||||||||||||||||||||||||
STMicroelectronics EMIF02-SPK01M6 | 6-UFDFN | 0.039 " | 1 mm | 0.057 in | 1.45 mm | Low Pass | Audio | 85 °C | -30 ░C | 2 | 10 Ohms, 220 pF | Surface Mount | 0.024 in | 0.6 mm | RC (Pi) | 2nd |
Description
General part information
EMIF02 Series
RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 33Ohms, C = 20pF 11-WFBGA, FCBGA
