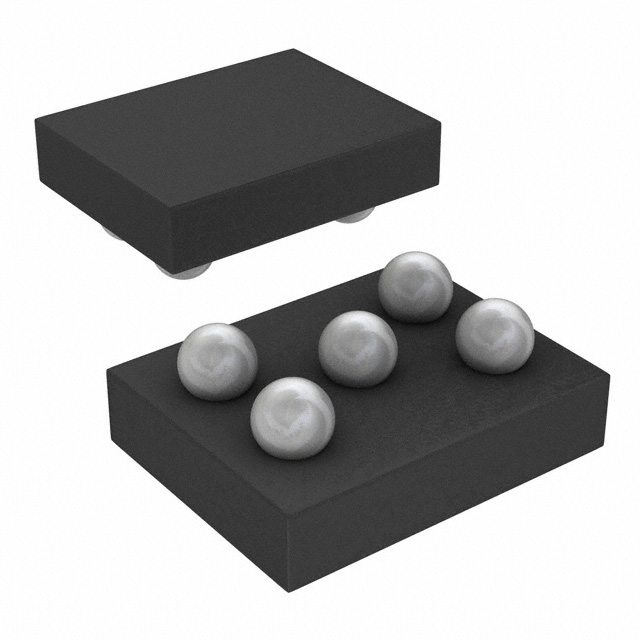

EMIF02-MIC03F2 - Flip-chip-5

EMIF02-MIC03F2

Active
STMicroelectronics

2-LINE EMI FILTER AND ESD PROTECTION FOR MICROPHONES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAN5686TN1310+15
EMIF02-MIC03F2 - Flip-chip-5

EMIF02-MIC03F2

Active
STMicroelectronics

2-LINE EMI FILTER AND ESD PROTECTION FOR MICROPHONES

Deep-Dive with AI

DocumentsAN5686TN1310+15

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationEMIF02-MIC03F2EMIF02 Series
Applications-Data Lines for Mobile Devices, USB, Audio
Attenuation Value-26 dB
Center / Cutoff Frequency-900 MHz
ESD Protection-True
Filter Order-2nd
Filter Order-3
Height-0.022 - 0.03 in
Height-0.55 - 0.76 mm
Mounting Type-Surface Mount
null-
Number of Channels-2 - 3
Operating Temperature-85 °C
Operating Temperature--40 - -30 °C
Package / Case-6-UFDFN, FCBGA, 8-WFBGA, 11-WFBGA, 5-WFBGA, 9-UFBGA, 6-WFBGA
Resistance - Channel (Ohms)-25 - 470 Ohms
Resistance - Channel (Ohms)-1.5k, 2.2k
Size / Dimension-0.036 - 0.057 "
Size / Dimension-0.92 - 1.44 mm
Size / Dimension-0.045 - 0.076 in
Size / Dimension-1.14 - 1.94 mm
Technology-RC (Pi), RC
Type-Low Pass
Values-1.5 - 470 pF
Values-830 - 1250 pF
Values-2.2 - 25 kOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.36
10$ 0.30
25$ 0.27
50$ 0.26
100$ 0.24
250$ 0.22
500$ 0.21
1000$ 0.20
Digi-Reel® 1$ 0.36
10$ 0.30
25$ 0.27
50$ 0.26
100$ 0.24
250$ 0.22
500$ 0.21
1000$ 0.20
Tape & Reel (TR) 5000$ 0.16

EMIF02 Series

EMI FILTER LOW PASS RC-CIRCUIT FLAT STYLE SMD T/R

PartPackage / CaseResistance - Channel (Ohms)ESD ProtectionSize / Dimension [y]Size / Dimension [y]Size / Dimension [x]Size / Dimension [x]TypeApplicationsOperating Temperature [Max]Operating Temperature [Min]Number of Channels [custom]ValuesMounting TypeCenter / Cutoff FrequencyHeight [z]Height [z]TechnologyAttenuation ValueFilter OrderResistance - Channel (Ohms)Values [custom]Values [custom]Filter Order
STMicroelectronics
EMIF02-1003M6
6-UFDFN
100 Ohms
0.039 "
1 mm
0.057 in
1.45 mm
Low Pass
Data Lines for Mobile Devices
85 °C
-40 °C
2
30 pF, 100 Ohms
Surface Mount
900 MHz
0.024 in
0.6 mm
RC (Pi)
26 dB
2nd
STMicroelectronics
EMIF02-1003M6
STMicroelectronics
EMIF02-USB05C2
8-WFBGA, FCBGA
33 Ohms
0.036 in
0.92 mm
0.076 in
1.92 mm
Low Pass
USB
85 °C
-40 °C
2
1.5 kOhms, 30 pF, 33 Ohms
Surface Mount
0.03 in
0.76 mm
RC (Pi)
2nd
1.5k
STMicroelectronics
EMIF02-MIC07F3
8-WFBGA, FCBGA
25 Ohms
0.046 in
1.17 mm
0.046 in
1.17 mm
Low Pass
Audio
85 °C
-40 °C
2
Surface Mount
0.026 in
0.65 mm
RC
2.2k
830 pF, 1250 pF
2.2 kOhms, 25 Ohms
3
STMicroelectronics
EMIF02-USB03F2
11-WFBGA, FCBGA
33 Ohms
0.057 in
1.44 mm
0.076 in
1.94 mm
Low Pass
USB
85 °C
-40 °C
2
20 pF, 33 Ohms
Surface Mount
0.028 in
0.7 mm
RC (Pi)
2nd
STMicroelectronics
EMIF02-MIC03F2
5-WFBGA, FCBGA
68 Ohms
0.042 in
1.07 mm
0.058 in
1.47 mm
Low Pass
Data Lines for Mobile Devices
85 °C
-40 °C
2
68 Ohms, 100 pF
Surface Mount
0.028 in
0.7 mm
RC (Pi)
2nd
STMicroelectronics
EMIF02-USB04F3
STMicroelectronics
EMIF02-MIC03F2
STMicroelectronics
EMIF02-1003M6
STMicroelectronics
EMIF02-SPK01M6
6-UFDFN
0.039 "
1 mm
0.057 in
1.45 mm
Low Pass
Audio
85 °C
-30 ░C
2
10 Ohms, 220 pF
Surface Mount
0.024 in
0.6 mm
RC (Pi)
2nd

Description

General part information

EMIF02 Series

The EMIF02-MIC03F2 is a highly integrated device designed to suppress EMI/RFI noise in all systems subjected to electromagnetic interferences. The EMIF02 Flip-Chip packaging means the package size is equal to the die size.

This filter includes an ESD protection circuitry which prevents damage to the application when subjected to ESD surges up 15 kV.
