Description

General part information

DRV8307 Series

The DRV8307 is a three half-bridge pre-driver that drives six N-type MOSFETs 30 mA with a single power supply. Aimed at sensored three-phase brushless DC motors, the DRV8307 is driven by a single PWM input and supports integrated commutation logic with three Hall sensor inputs. A separate 5-V regulator is also included to be used to power Hall-effect sensors and other external components.

The DRV8307 includes a current sense input for current limiting and protection. The current limit can be set by adjusting the value of the RISENSEsense resistor.

Motor operation (start and stop) is controlled through the ENABLEn terminal. If the ENABLEn terminal is set high and motor rotation has stopped, the device enters into a low-power standby state, thereby conserving overall system power during periods of inactivity.

Technical Specifications

Parameters and characteristics for this part

Specification	DRV8307RHAR

Applications	General Purpose
Function	Controller - Commutation, Direction Management
Interface	PWM, Parallel
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Pre-Driver - Half Bridge, Pre-Driver - Half Bridge (3)
Output Configuration Count	3
Package / Case	40-VFQFN Exposed Pad
Package Length	6 mm
Package Name	40-VQFN
Package Width	6 mm
Technology	NMOS
Voltage - Supply (Maximum)	32 V
Voltage - Supply (Minimum)	8.5 V

DRV8307 Series

Part	Supplied Contents	Secondary Attributes	Contents	Type	Utilized IC / Part	Primary Attributes	Function	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Configuration Count	Output Configuration	Technology	Mounting Type	Package / Case	Motor Type - AC, DC	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Interface	Applications

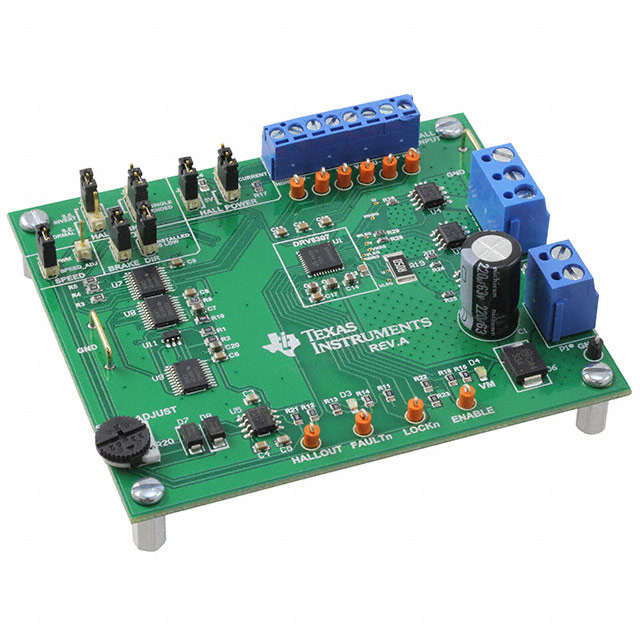

Texas Instruments DRV8307EVM	Board(s)	Potentiometer Speed Control	Board	Power Management	DRV8307	Motors (BLDC)	Driver Motor Controller
Texas Instruments DRV8307RHAT							Controller - Commutation Direction Management	32 V	8.5 V	3	Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3)	NMOS	Surface Mount	40-VFQFN Exposed Pad	Brushless DC (BLDC)	125 °C	-40 °C	6 mm	40-VQFN	6 mm	Parallel PWM	General Purpose
Texas Instruments DRV8307RHAR							Controller - Commutation Direction Management	32 V	8.5 V	3	Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3)	NMOS	Surface Mount	40-VFQFN Exposed Pad	Brushless DC (BLDC)	125 °C	-40 °C	6 mm	40-VQFN	6 mm	Parallel PWM	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

DRV8307 Brushless DC Motor Controller datasheet (Rev. A)
