ESD051-1F4 - ST0201

ESD051-1F4

Active
STMicroelectronics

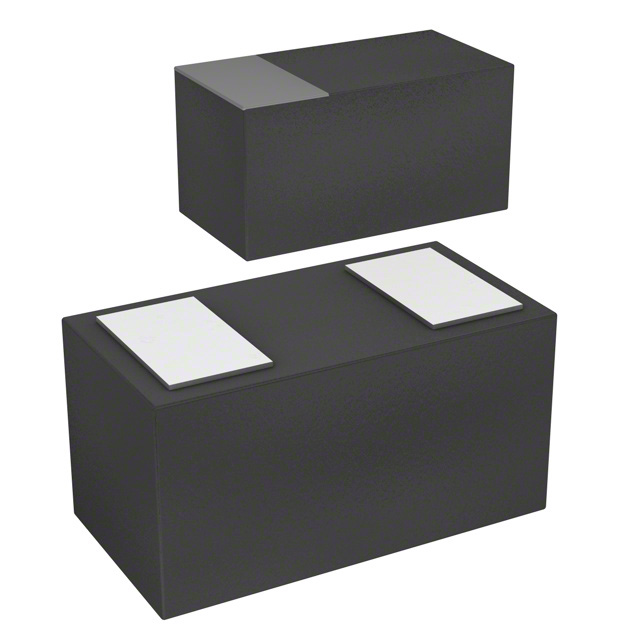

ESD PROTECTION DEVICE, 9 V, 0201 [0603 METRIC], 2 PINS, 5.5 V, 110 PF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetAN4871+23
ESD051-1F4 - ST0201

ESD051-1F4

Active
STMicroelectronics

ESD PROTECTION DEVICE, 9 V, 0201 [0603 METRIC], 2 PINS, 5.5 V, 110 PF

Deep-Dive with AI

DocumentsDatasheetAN4871+23

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationESD051-1F4ESD051 Series
Applications-General Purpose
Capacitance @ Frequency-110 pF
Current - Peak Pulse (10/1000µs)-11 A
Mounting Type-Surface Mount
null-
Operating Temperature--55 °C
Operating Temperature-150 °C
Package / Case-0603 Metric
Package / Case-0201
Power - Peak Pulse-110 W
Power Line Protection-False
Supplier Device Package-ST0201
Type-Zener
Unidirectional Channels-1
Voltage - Breakdown (Min)-5.8 V
Voltage - Clamping (Max) @ Ipp-9 V
Voltage - Reverse Standoff (Typ)-5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.19
10$ 0.12
100$ 0.07
500$ 0.05
1000$ 0.05
2000$ 0.04
5000$ 0.04
Digi-Reel® 1$ 0.19
10$ 0.12
100$ 0.07
500$ 0.05
1000$ 0.05
2000$ 0.04
5000$ 0.04
Tape & Reel (TR) 15000$ 0.03
30000$ 0.03
75000$ 0.02
105000$ 0.02

ESD051 Series

Low clamping single line unidirectional ESD protection

PartSupplier Device PackageVoltage - Breakdown (Min) [Min]Current - Peak Pulse (10/1000µs)Power - Peak PulseApplicationsMounting TypePower Line ProtectionCapacitance @ FrequencyPackage / CasePackage / CaseOperating Temperature [Min]Operating Temperature [Max]Voltage - Reverse Standoff (Typ)Voltage - Clamping (Max) @ IppUnidirectional Channels [custom]Type
STMicroelectronics
ESD051-1F4
STMicroelectronics
ESD051-1F4
ST0201
5.8 V
11 A
110 W
General Purpose
Surface Mount
110 pF
0603 Metric
0201
-55 °C
150 °C
5.5 V
9 V
1
Zener
STMicroelectronics
ESD051-1F4

Description

General part information

ESD051 Series

The ESD051-1F4 is a unidirectional single line TVS diode designed to protect the power line against EOS and ESD transients.

This ESD suppressor is ideal for applications where PCB space saving is required such as cellular handsets and accessories, wearable devices, USB buses, battery lines.
