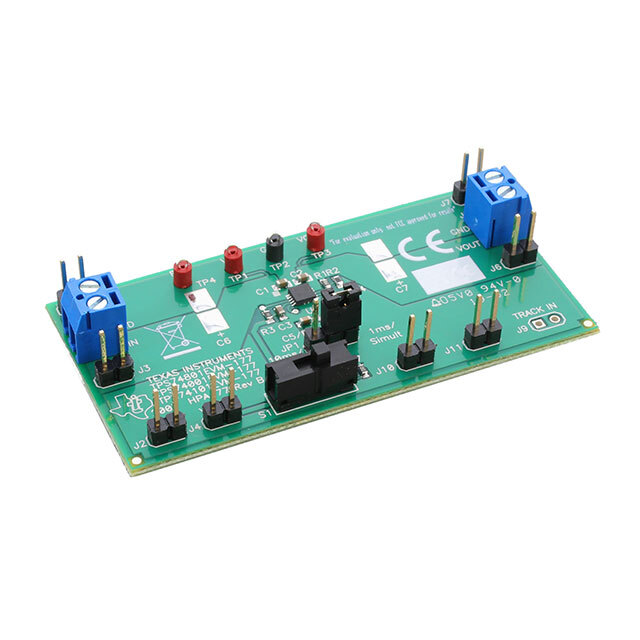

TPS74801EVM-177
ActiveTPS74801EVM-177
Deep-Dive with AI
Search across all available documentation for this part.
TPS74801EVM-177
ActiveTPS74801EVM-177
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS74801EVM-177 | TPS74801 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 | 1 |
| Control Features | - | Power Good, Soft Start, Enable |
| Current - Output | 1.5 A | 1.5 A |
| Current - Quiescent (Iq) | - | 2 mA |
| Grade | - | Automotive |
| Mounting Type | - | Surface Mount |
| Number of Regulators | - | 1 |
| Operating Temperature | - | 105 - 125 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | Adjustable |
| Package / Case | - | 20-VQFN Exposed Pad, 10-VFDFN Exposed Pad |
| Protection Features | - | Under Voltage Lockout (UVLO), Over Temperature, Over Current, Short Circuit |
| PSRR | - | 30 - 60 dB |
| PSRR | - | 30 - 50 dB |
| Qualification | - | AEC-Q100 |
| Regulator Type | Positive Adjustable | Positive Adjustable |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-VQFN (5x5), 10-VSON (3x3) |
| Utilized IC / Part | TPS74801 | TPS74801 |
| Voltage - Input (Max) | - | 5.5 V |
| Voltage - Input [Max] | 5.5 V | 5.5 V |
| Voltage - Input [Min] | 2.83 V | 2.83 V |
| Voltage - Output | 1.2 V | 1.2 V |
| Voltage - Output (Max) | - | 3.6 V |
| Voltage - Output (Min/Fixed) | - | 0.8 V |
| Voltage Dropout (Max) | - | 0.16 - 0.165 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.00 | |
TPS74801 Series
1.5-A low-VIN (0.8 V) adjustable low-dropout (LDO) voltage regulator with power good and enable
| Part | Control Features | PSRR [Min] | PSRR [Max] | Voltage - Output (Min/Fixed) | Output Type | Package / Case | Grade | Mounting Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Max) [Max] | Voltage Dropout (Max) [Max] | Output Configuration | Number of Regulators | Current - Output | Qualification | Voltage - Input (Max) [Max] | Protection Features | Channels per IC | Regulator Type | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Board Type | Supplied Contents | Current - Quiescent (Iq) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS74801QRGWRQ1 | Enable, Power Good, Soft Start | 30 dB | 50 dB | 0.8 V | Adjustable | 20-VQFN Exposed Pad | Automotive | Surface Mount | 20-VQFN (5x5) | 125 °C | -40 °C | 3.6 V | 0.16 V | Positive | 1 | 1.5 A | AEC-Q100 | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | |||||||||
Texas Instruments TPS74801TDRCRQ1 | Enable, Power Good, Soft Start | 30 dB | 50 dB | 0.8 V | Adjustable | 10-VFDFN Exposed Pad | Automotive | Surface Mount | 10-VSON (3x3) | 105 ░C | -40 °C | 3.6 V | 0.16 V | Positive | 1 | 1.5 A | AEC-Q100 | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | |||||||||
Texas Instruments TPS74801DRCTG4 | Enable, Power Good, Soft Start | 30 dB | 50 dB | 0.8 V | Adjustable | 10-VFDFN Exposed Pad | Surface Mount | 10-VSON (3x3) | 125 °C | -40 °C | 3.6 V | 0.16 V | Positive | 1 | 1.5 A | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | |||||||||||
Texas Instruments TPS74801EVM-177 | 1.5 A | 1 | Positive Adjustable | TPS74801 | 5.5 V | 2.83 V | 1.2 V | Fully Populated | Board(s) | |||||||||||||||||||
Texas Instruments TPS74801RGWRG4 | Enable, Power Good, Soft Start | 30 dB | 50 dB | 0.8 V | Adjustable | 20-VQFN Exposed Pad | Surface Mount | 20-VQFN (5x5) | 125 °C | -40 °C | 3.6 V | 0.16 V | Positive | 1 | 1.5 A | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | |||||||||||
Texas Instruments TPS74801RGWR | Enable, Power Good, Soft Start | 30 dB | 50 dB | 0.8 V | Adjustable | 20-VQFN Exposed Pad | Surface Mount | 20-VQFN (5x5) | 125 °C | -40 °C | 3.6 V | 0.16 V | Positive | 1 | 1.5 A | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | |||||||||||
Texas Instruments TPS74801RGWT | Enable, Power Good, Soft Start | 30 dB | 50 dB | 0.8 V | Adjustable | 20-VQFN Exposed Pad | Surface Mount | 20-VQFN (5x5) | 125 °C | -40 °C | 3.6 V | 0.16 V | Positive | 1 | 1.5 A | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | |||||||||||
Texas Instruments TPS74801DRCRG4 | Enable, Power Good, Soft Start | 30 dB | 50 dB | 0.8 V | Adjustable | 10-VFDFN Exposed Pad | Surface Mount | 10-VSON (3x3) | 125 °C | -40 °C | 3.6 V | 0.16 V | Positive | 1 | 1.5 A | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | |||||||||||
Texas Instruments TPS74801DRCT | Enable, Power Good, Soft Start | 30 dB | 50 dB | 0.8 V | Adjustable | 10-VFDFN Exposed Pad | Surface Mount | 10-VSON (3x3) | 125 °C | -40 °C | 3.6 V | 0.16 V | Positive | 1 | 1.5 A | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | |||||||||||
Texas Instruments TPS74801DRCRM3 | Enable, Power Good, Soft Start | 60 dB | 30 dB | 0.8 V | Adjustable | 10-VFDFN Exposed Pad | Surface Mount | 10-VSON (3x3) | 125 ¯C | -40 °C | 3.6 V | 0.165 V | Positive | 1 | 1.5 A | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | 2 mA | ||||||||||
Texas Instruments TPS74801DRCR | Enable, Power Good, Soft Start | 30 dB | 50 dB | 0.8 V | Adjustable | 10-VFDFN Exposed Pad | Surface Mount | 10-VSON (3x3) | 125 °C | -40 °C | 3.6 V | 0.16 V | Positive | 1 | 1.5 A | 5.5 V | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
Description
General part information
TPS74801 Series
The TPS748 low-dropout (LDO) linear regulator provides an easy-to-use robust power management solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and designed for powering many different types of processors and ASICs. The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility allows a solution to be configured that meets the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements.
A precision reference and error amplifier deliver 1% accuracy (new chip) over load, line, temperature, and process. The device is stable with any type of capacitor greater than or equal to 2.2µF, and is fully specified for TJ = –40°C to +125°C. The TPS748 is offered in a small, 3mm × 3mm, VSON-10 package, yielding a highly compact, total solution size. The device is also available in a 5mm × 5mm VQFN-20 package for compatibility with theTPS742.
The TPS748 low-dropout (LDO) linear regulator provides an easy-to-use robust power management solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and designed for powering many different types of processors and ASICs. The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility allows a solution to be configured that meets the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements.
