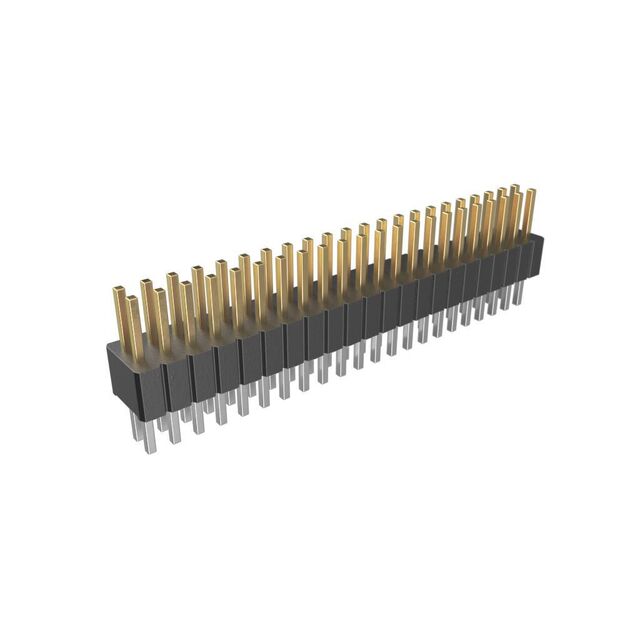

20021111-00044T4LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 44POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek127 productpresentation Other Related Document 20021111 Datasheet +2

20021111-00044T4LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 44POS 1.27MM

Deep-Dive with AI

Documentsminitek127 productpresentation Other Related Document 20021111 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20021111-00044T4LF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.86 mm
Overall Contact Length	0.309 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	125 VAC

20021111 Series

Part	Mounting Type	Connector Type	Termination	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Shape	Contact Type	Voltage Rating	Shrouding	Current Rating (Amps)	Contact Material	Insulation Color	Insulation Material	Fastening Type	Number of Rows	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Features
Amphenol ICC (FCI) 20021111-00010T1LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm	Flash	UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	10	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin
Amphenol ICC (FCI) 20021111-00018T4LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	18	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021111-00022T8LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold GXT™	22 positions	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	30 Áin	0.76 Ám
Amphenol ICC (FCI) 20021111-00040T8LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold GXT™	40	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	30 Áin	0.76 Ám
Amphenol ICC (FCI) 20021111-00080T1LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm	Flash	UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	80	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin
Amphenol ICC (FCI) 20021111-00006T7LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.85 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold GXT™	6			0.098 in	2.5 mm	0.05 in	1.27 mm	Gold	15 µin	0.38 µm	Flash	Pick and Place
Amphenol ICC (FCI) 20021111-00044T4LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	44	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021111-00030T1LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm	Flash	UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	30	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin
Amphenol ICC (FCI) 20021111-00070T4LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	70	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021111-00014T1LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm	Flash	UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	14	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1470	$ 1.71

Description

General part information

20021111 Series

Connector Header Through Hole 44 position 0.050" (1.27mm)

Documents

Technical documentation and resources

minitek127 productpresentation Other Related Document

20021111 Datasheet

Datasheet
