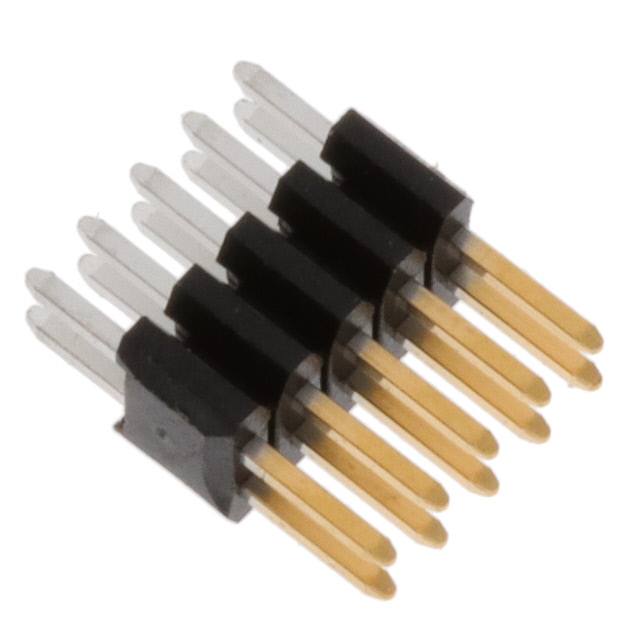

CONN HEADER VERT 10POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents10166143-00020C1LF 20021111 Datasheet +2

20021111-00010T1LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 10POS 1.27MM

Deep-Dive with AI

Documents10166143-00020C1LF 20021111 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20021111-00010T1LF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.86 mm
Overall Contact Length	0.309 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	125 VAC

20021111 Series

Part	Mounting Type	Connector Type	Termination	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Shape	Contact Type	Voltage Rating	Shrouding	Current Rating (Amps)	Contact Material	Insulation Color	Insulation Material	Fastening Type	Number of Rows	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Features
Amphenol ICC (FCI) 20021111-00010T1LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm	Flash	UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	10	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin
Amphenol ICC (FCI) 20021111-00018T4LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	18	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021111-00022T8LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold GXT™	22 positions	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	30 Áin	0.76 Ám
Amphenol ICC (FCI) 20021111-00040T8LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold GXT™	40	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	30 Áin	0.76 Ám
Amphenol ICC (FCI) 20021111-00080T1LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm	Flash	UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	80	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin
Amphenol ICC (FCI) 20021111-00006T7LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.85 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold GXT™	6			0.098 in	2.5 mm	0.05 in	1.27 mm	Gold	15 µin	0.38 µm	Flash	Pick and Place
Amphenol ICC (FCI) 20021111-00044T4LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	44	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021111-00030T1LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm	Flash	UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	30	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin
Amphenol ICC (FCI) 20021111-00070T4LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm		UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	70	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin	10 çin	0.25 çm
Amphenol ICC (FCI) 20021111-00014T1LF	Through Hole	Header	Solder	3.05 mm	0.12 in	7.86 mm	0.309 in	All	-55 °C	125 °C	0.05 in	1.27 mm	0.091 in	2.3 mm	Flash	UL94 V-0	Square	Male Pin	125 VAC	Unshrouded	1 A	Copper Alloy	Black	Thermoplastic	Push-Pull	2	Gold	14	1.27 µm	50 µin	0.098 in	2.5 mm	0.05 in	1.27 mm	Tin
