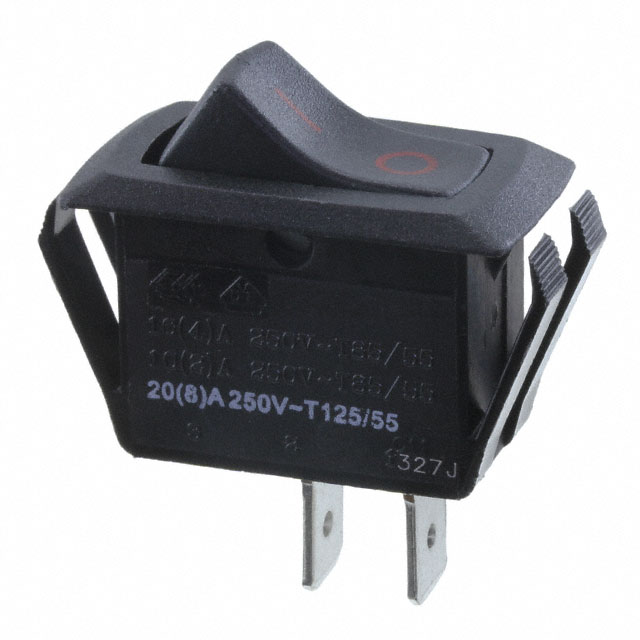

RSC241D1A81

Active

E-Switch

ROCKER; SPST-NO; POS: 2; ON-OFF; 16A/250VAC; BLACK-RED; NONE; RSC

Search across all available documentation for this part.

Active

E-Switch

ROCKER; SPST-NO; POS: 2; ON-OFF; 16A/250VAC; BLACK-RED; NONE; RSC

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Electrical Life	Illumination Voltage (Nominal)	Actuator Marking	Current Rating (Amps)	Termination Style	Circuit	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Color - Actuator/Cap	Switch Function	Actuator Type	Features
E-Switch RSC241D1023-135	125 V	-20 C	105 ░C	Green Incandescent	10000 Cycles	24 V	ON OFF Vertical	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	12.1 mm	27.2 mm	CSA UL	Green	On-Off	Concave (Curved) - Illuminated
E-Switch RSC241D1A81	125 V	-20 C	105 ░C		10000 Cycles		O -	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	12.1 mm	27.2 mm	CSA UL	Black Red	On-Off	Concave (Curved)	Two-Tone Rocker
E-Switch RSC241D1A83	125 V	-20 C	105 ░C		10000 Cycles		ON OFF Vertical	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	12.1 mm	27.2 mm	CSA UL	Black Red	On-Off	Concave (Curved)	Two-Tone Rocker
E-Switch RSC441D1A83	125 V	-20 C	105 ░C		10000 Cycles		ON OFF Vertical	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In			CSA UL	Black Red	On-Off	Concave (Curved)	Two-Tone Rocker
E-Switch RSC241D1B2R	125 V	-20 C	105 ░C		10000 Cycles		O I	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	12.1 mm	27.2 mm	CSA UL	Black White	On-Off	Concave (Curved)	Two-Tone Rocker

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
