RSC241D1023-135

Obsolete

E-Switch

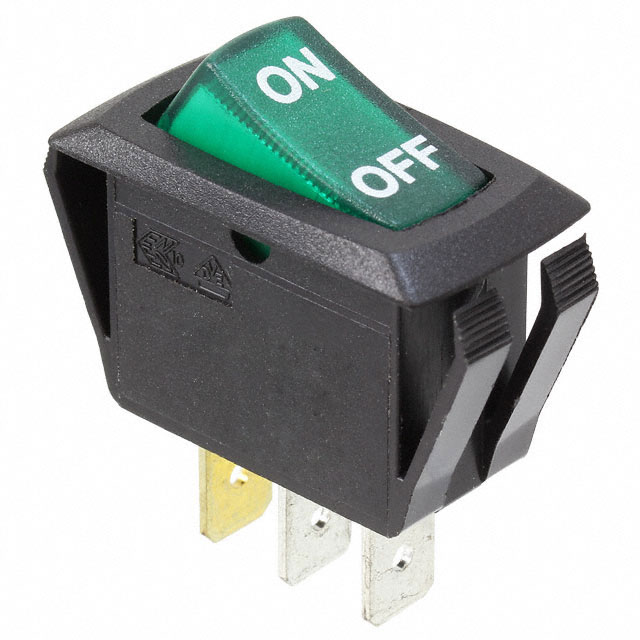

SWITCH ROCKER SPST 20A 125V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH ROCKER SPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RSC241D1023-135

Actuator Marking	Vertical, ON OFF
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	CSA, UL
Circuit	SPST
Color - Actuator/Cap	Green
Current Rating (Amps)	20 A
Electrical Life	10000 Cycles
Illumination Type, Color	Green, Incandescent
Illumination Voltage (Nominal)	24 V
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	27.2 mm
Panel Cutout Dimensions [y]	12.1 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Electrical Life	Illumination Voltage (Nominal)	Actuator Marking	Current Rating (Amps)	Termination Style	Circuit	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Color - Actuator/Cap	Switch Function	Actuator Type	Features
E-Switch RSC241D1023-135	125 V	-20 C	105 ░C	Green Incandescent	10000 Cycles	24 V	ON OFF Vertical	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	12.1 mm	27.2 mm	CSA UL	Green	On-Off	Concave (Curved) - Illuminated
E-Switch RSC241D1A81	125 V	-20 C	105 ░C		10000 Cycles		O -	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	12.1 mm	27.2 mm	CSA UL	Black Red	On-Off	Concave (Curved)	Two-Tone Rocker
E-Switch RSC241D1A83	125 V	-20 C	105 ░C		10000 Cycles		ON OFF Vertical	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	12.1 mm	27.2 mm	CSA UL	Black Red	On-Off	Concave (Curved)	Two-Tone Rocker
E-Switch RSC441D1A83	125 V	-20 C	105 ░C		10000 Cycles		ON OFF Vertical	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In			CSA UL	Black Red	On-Off	Concave (Curved)	Two-Tone Rocker
E-Switch RSC241D1B2R	125 V	-20 C	105 ░C		10000 Cycles		O I	20 A	Quick Connect - 0.250" (6.3mm)	SPST	Panel Mount Snap-In	12.1 mm	27.2 mm	CSA UL	Black White	On-Off	Concave (Curved)	Two-Tone Rocker
