LM26480SQ-BF/NOPB

Obsolete

Texas Instruments

IC REG QUAD BUCK/LNR SYNC 24WQFN

Find alt

Alpha

LM26480SQ-BF/NOPB

Obsolete

Texas Instruments

IC REG QUAD BUCK/LNR SYNC 24WQFN

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

LM26480 Series

The LM26480 is a multi-functional power management unit (PMU), optimized for low-power digital applications. This device integrates two highly efficient 1.5-A step-down DC-DC converters and two 300-mA linear regulators. The DC-DC buck converters provide typical efficiencies of 96%, allowing for minimal power consumption. Features include soft start, undervoltage lockout, current overload protection, thermal overload protection, and an internal power-on-reset (POR) circuit, which monitors the output voltage levels on bucks 1 and 2.

Technical Specifications

Parameters and characteristics for this part

Specification	LM26480SQ-BF/NOPB

Current - Output 1	1.5 A
Current - Output 2	1.5 A
Current (Output 3)	300 mA
Frequency - Switching	2 MHz
Mounting Type	Surface Mount
Number of Outputs	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	24-WFQFN Exposed Pad
Package Length	4 mm
Package Name	24-WQFN
Package Width	4 mm
Topology	Step-Down (Buck) Synchronous (2), Linear (LDO) (2)
Voltage - Output 1 (Max)	2 V
Voltage - Output 1 (Min)	800 mV
Voltage - Output 2 (Maximum)	3.3 V
Voltage - Output 2 (Minimum)	1 V
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	2.8 V
Voltage (Output 3) (Max)	3.5 V
Voltage (Output 3) (Min)	1 V
w/LED Driver	No
w/Sequencer	No
w/Supervisor	No

LM26480 Series

Externally configurable dual 1.5A step-down DC/DC and dual 300mA linear regulators

Part	Frequency - Switching	Number of Outputs	Mounting Type	Package / Case	Voltage (Output 3) (Max)	Current (Output 3)	Voltage (Output 3) (Min)	w/Sequencer	Voltage - Output 2 (Maximum)	Voltage - Output 2 (Minimum)	Current - Output 2	Voltage - Output 1 (Min)	Current - Output 1	Voltage - Output 1 (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	w/LED Driver	w/Supervisor	Package Length	Package Name	Package Width	Topology	Voltage - Output 2	Voltage - Output 1	Voltage/Current - Output 3 Options	Voltage (Output 3)	Grade	Qualification	Supplied Contents	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Current - Output (Value 4)	Current - Output (Value 3)	Current - Output (Value 2)	Current - Output (Value 1)	Utilized IC / Part	Main Purpose	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Voltage - Output (3)	Voltage - Output (1)	Voltage - Output (4)	Voltage - Output (2)	Regulator Topology	Contents
Texas Instruments LM26480SQ-BF/NOPB	2 MHz	4	Surface Mount	24-WFQFN Exposed Pad	3.5 V	300 mA	1 V	No	3.3 V	1 V	1.5 A	800 mV	1.5 A	2 V	-40 °C	85 °C	5.5 V	2.8 V	No	No	4 mm	24-WQFN	4 mm	Linear (LDO) (2) Step-Down (Buck) Synchronous (2)
Texas Instruments LM26480QSQX-8D/NOPB	2 MHz	4	Surface Mount	24-WFQFN Exposed Pad		300 mA		No			1.5 A		1.5 A		-40 °C	85 °C	5.5 V	2.8 V	No	No	4 mm	24-WQFN	4 mm	Linear (LDO) (2) Step-Down (Buck) Synchronous (2)	3.3 V	2 V	Adjustable to Adjustable to 3.5V	3.5 V	Automotive	AEC-Q100
Texas Instruments LM26480SQX-BF/NOPB	2 MHz	4	Surface Mount	24-WFQFN Exposed Pad	3.5 V	300 mA	1 V	No	3.3 V	1 V	1.5 A	800 mV	1.5 A	2 V	-40 °C	85 °C	5.5 V	2.8 V	No	No	4 mm	24-WQFN	4 mm	Linear (LDO) (2) Step-Down (Buck) Synchronous (2)
Texas Instruments LM26480SQ-AA/NOPB	2 MHz	4	Surface Mount	24-WFQFN Exposed Pad	3.5 V	300 mA	1 V	No	3.3 V	1 V	1.5 A	800 mV	1.5 A	2 V	-40 °C	85 °C	5.5 V	2.8 V	No	No	4 mm	24-WQFN	4 mm	Linear (LDO) (2) Step-Down (Buck) Synchronous (2)
Texas Instruments LM26480QSQX-AA/NOPB	2 MHz	4	Surface Mount	24-WFQFN Exposed Pad	3.5 V	300 mA	1 V	No	3.3 V	1 V	1.5 A	800 mV	1.5 A	2 V	-40 °C	85 °C	5.5 V	2.8 V	No	No	4 mm	24-WQFN	4 mm	Linear (LDO) (2) Step-Down (Buck) Synchronous (2)					Automotive	AEC-Q100
Texas Instruments LM26480SQX-AA/NOPB	2 MHz	4	Surface Mount	24-WFQFN Exposed Pad	3.5 V	300 mA	1 V	No	3.3 V	1 V	1.5 A	800 mV	1.5 A	2 V	-40 °C	85 °C	5.5 V	2.8 V	No	No	4 mm	24-WQFN	4 mm	Linear (LDO) (2) Step-Down (Buck) Synchronous (2)
Texas Instruments LM26480SQ-AAEV/NOPB	2 MHz																														Board(s)	4 count	Non-Isolated	4	Fully Populated	300 mA	300 mA	1.5 A	1.5 A	LM26480	DC/DC Step Down with LDO	5.5 V	2.8 V	1.8 V	1 V	3.3 V	1.2 V	Buck	Board

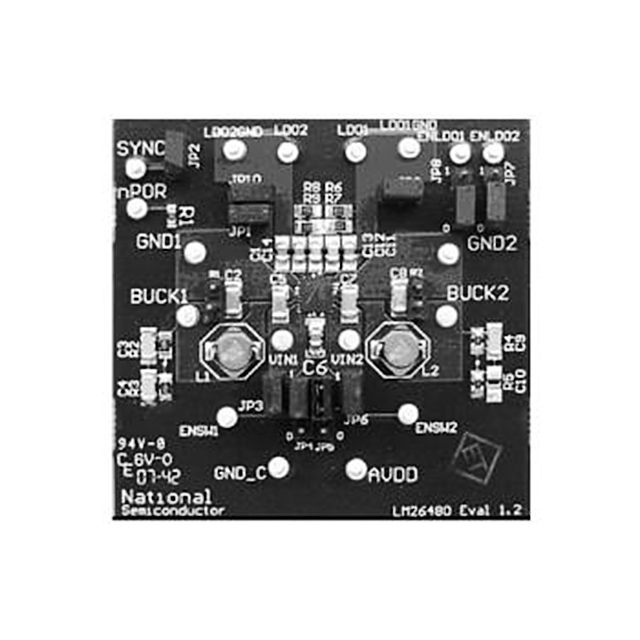

Texas Instruments LM26480SQ-AAEV	2 MHz																														Board(s)	4 count	Non-Isolated	4	Fully Populated	300 mA	300 mA	1.5 A	1.5 A	LM26480	DC/DC Step Down with LDO	5.5 V	2.8 V	1.8 V	1 V	3.3 V	1.2 V	Buck	Board
Texas Instruments LM26480QSQX-CF/NOPB	2 MHz	4	Surface Mount	24-WFQFN Exposed Pad	3.5 V	300 mA	1 V	No	3.3 V	1 V	1.5 A	800 mV	1.5 A	2 V	-40 °C	85 °C	5.5 V	2.8 V	No	No	4 mm	24-WQFN	4 mm	Linear (LDO) (2) Step-Down (Buck) Synchronous (2)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
