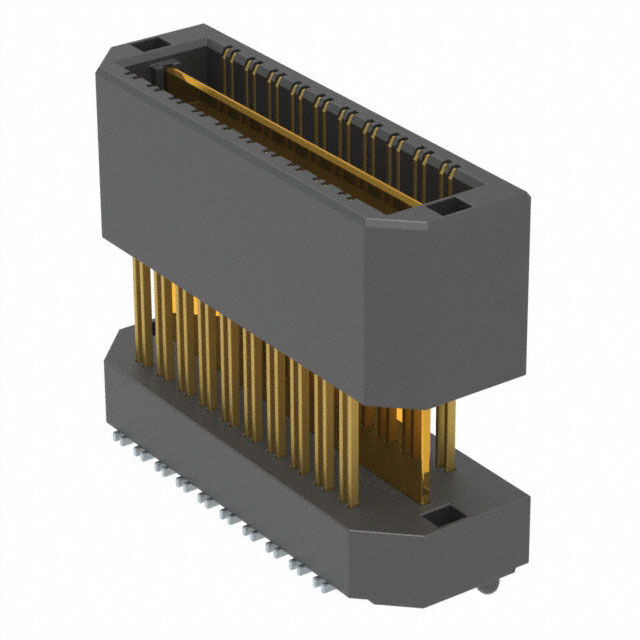

QTH-020-04-L-D-DP-A - QTH-020-04-L-D-DP-A

QTH-020-04-L-D-DP-A

Active
Samtec Inc.

CONN DIFF ARRAY PLG 40P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair+3
QTH-020-04-L-D-DP-A - QTH-020-04-L-D-DP-A

QTH-020-04-L-D-DP-A

Active
Samtec Inc.

CONN DIFF ARRAY PLG 40P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair+3

Technical Specifications

Parameters and characteristics for this part

SpecificationQTH-020-04-L-D-DP-A
Connector TypeDifferential Pair Array, Male
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Height Above Board0.6 in
Height Above Board15.24 mm
Mated Stacking Heights16 mm
Mounting TypeSurface Mount
Number of Positions40
Number of Rows2
Pitch [x]0.5 mm
Pitch [x]0.02 in

QTH-020 Series

PartNumber of RowsContact FinishMated Stacking HeightsNumber of PositionsHeight Above BoardHeight Above BoardPitch [x]Pitch [x]Connector TypeContact Finish ThicknessContact Finish ThicknessMounting TypeFeatures
Samtec Inc.
QTH-020-05-C-D-DP-A
2
Gold
19 mm
40
18.24 mm
0.718 in
0.5 mm
0.02 in
Differential Pair Array
Male
50 µin
1.27 µm
Surface Mount
Samtec Inc.
QTH-020-05-L-D-DP-A
2
Gold
19 mm
40
18.24 mm
0.718 in
0.5 mm
0.02 in
Differential Pair Array
Male
10 Áin
0.25 Ám
Surface Mount
Samtec Inc.
QTH-020-01-H-D-DP-A-K-RT1
2
Gold
5 mm
40
4.06 mm
0.16 in
0.5 mm
0.02 in
Differential Pair Array
Male
30 Áin
0.76 Ám
Surface Mount
Board Guide
Ground Bus (Plane)
Mounting Flange
Pick and Place
Samtec Inc.
QTH-020-03-F-D-DP-K
2
Gold
11 mm
40
10.27 mm
0.404 in
0.5 mm
0.02 in
Differential Pair Array
Male
3 Áin
0.076 Ám
Surface Mount
Ground Bus (Plane)
Pick and Place
Samtec Inc.
QTH-020-03-H-D-DP-A-K-TR
2
Gold
11 mm
40
10.27 mm
0.404 in
0.5 mm
0.02 in
Differential Pair Array
Male
30 Áin
0.76 Ám
Surface Mount
Board Guide
Ground Bus (Plane)
Pick and Place
Samtec Inc.
QTH-020-05-L-D-DP-A-TR
2
Gold
19 mm
40
18.24 mm
0.718 in
0.5 mm
0.02 in
Differential Pair Array
Male
10 Áin
0.25 Ám
Surface Mount
Samtec Inc.
QTH-020-02-L-D-DP-A-K-TR
2
Gold
8 mm
40
7.26 mm
0.286 "
0.5 mm
0.02 in
Differential Pair Array
Male
10 Áin
0.25 Ám
Surface Mount
Board Guide
Ground Bus (Plane)
Pick and Place
Samtec Inc.
QTH-020-04-L-D-DP-A
2
Gold
16 mm
40
15.24 mm
0.6 in
0.5 mm
0.02 in
Differential Pair Array
Male
10 Áin
0.25 Ám
Surface Mount
Samtec Inc.
QTH-020-01-L-D-DP-A
2
Gold
5 mm
40
4.06 mm
0.16 in
0.5 mm
0.02 in
Differential Pair Array
Male
10 Áin
0.25 Ám
Surface Mount
Samtec Inc.
QTH-020-05-F-D-DP
2
Gold
19 mm
40
18.24 mm
0.718 in
0.5 mm
0.02 in
Differential Pair Array
Male
3 Áin
0.076 Ám
Surface Mount
Ground Bus (Plane)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 15.25
80$ 14.88
120$ 13.36

Description

General part information

QTH-020 Series

40 Position Connector Differential Pair Array, Male Surface Mount Gold
