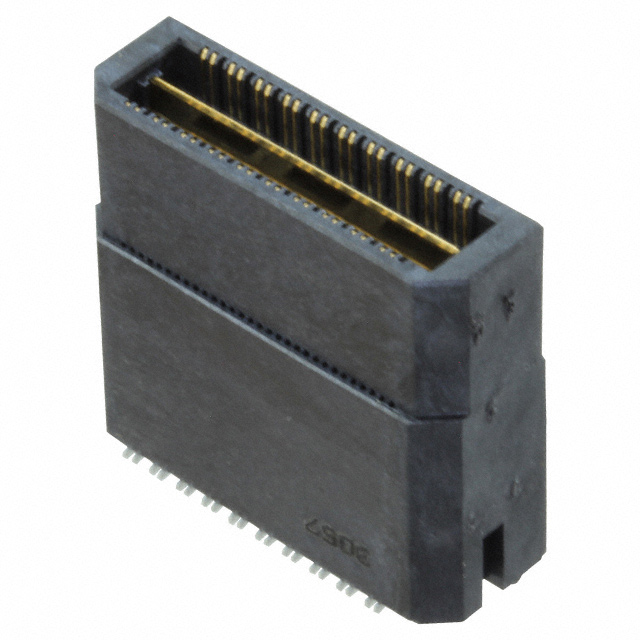

QTH-020-05-L-D-DP-A

Active

Samtec Inc.

CONN DIFF ARRAY PLG 40P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair QTH-020-01-F-D-DP-A Datasheet 02 +3

QTH-020-05-L-D-DP-A

Active

Samtec Inc.

CONN DIFF ARRAY PLG 40P SMD GOLD

Deep-Dive with AI

Documents0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair QTH-020-01-F-D-DP-A Datasheet 02 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTH-020-05-L-D-DP-A

Connector Type	Differential Pair Array, Male
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	18.24 mm
Height Above Board	0.718 in
Mated Stacking Heights	19 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QTH-020 Series

Part	Number of Rows	Contact Finish	Mated Stacking Heights	Number of Positions	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features
Samtec Inc. QTH-020-05-C-D-DP-A	2	Gold	19 mm	40	18.24 mm	0.718 in	0.5 mm	0.02 in	Differential Pair Array Male	50 µin	1.27 µm	Surface Mount
Samtec Inc. QTH-020-05-L-D-DP-A	2	Gold	19 mm	40	18.24 mm	0.718 in	0.5 mm	0.02 in	Differential Pair Array Male	10 Áin	0.25 Ám	Surface Mount
Samtec Inc. QTH-020-01-H-D-DP-A-K-RT1	2	Gold	5 mm	40	4.06 mm	0.16 in	0.5 mm	0.02 in	Differential Pair Array Male	30 Áin	0.76 Ám	Surface Mount	Board Guide Ground Bus (Plane) Mounting Flange Pick and Place
Samtec Inc. QTH-020-03-F-D-DP-K	2	Gold	11 mm	40	10.27 mm	0.404 in	0.5 mm	0.02 in	Differential Pair Array Male	3 Áin	0.076 Ám	Surface Mount	Ground Bus (Plane) Pick and Place
Samtec Inc. QTH-020-03-H-D-DP-A-K-TR	2	Gold	11 mm	40	10.27 mm	0.404 in	0.5 mm	0.02 in	Differential Pair Array Male	30 Áin	0.76 Ám	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QTH-020-05-L-D-DP-A-TR	2	Gold	19 mm	40	18.24 mm	0.718 in	0.5 mm	0.02 in	Differential Pair Array Male	10 Áin	0.25 Ám	Surface Mount
Samtec Inc. QTH-020-02-L-D-DP-A-K-TR	2	Gold	8 mm	40	7.26 mm	0.286 "	0.5 mm	0.02 in	Differential Pair Array Male	10 Áin	0.25 Ám	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QTH-020-04-L-D-DP-A	2	Gold	16 mm	40	15.24 mm	0.6 in	0.5 mm	0.02 in	Differential Pair Array Male	10 Áin	0.25 Ám	Surface Mount
Samtec Inc. QTH-020-01-L-D-DP-A	2	Gold	5 mm	40	4.06 mm	0.16 in	0.5 mm	0.02 in	Differential Pair Array Male	10 Áin	0.25 Ám	Surface Mount
Samtec Inc. QTH-020-05-F-D-DP	2	Gold	19 mm	40	18.24 mm	0.718 in	0.5 mm	0.02 in	Differential Pair Array Male	3 Áin	0.076 Ám	Surface Mount	Ground Bus (Plane)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.67
		10	$ 13.27
		25	$ 12.93
		50	$ 12.30
		100	$ 10.76

Description

General part information

QTH-020 Series

40 Position Connector Differential Pair Array, Male Surface Mount Gold

Documents

Technical documentation and resources

0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair

QTH-020-01-F-D-DP-A Datasheet 02

Datasheet

QSH Series Other Related Documents 03

QTH-DP Surface Mount Footprint

Datasheet
