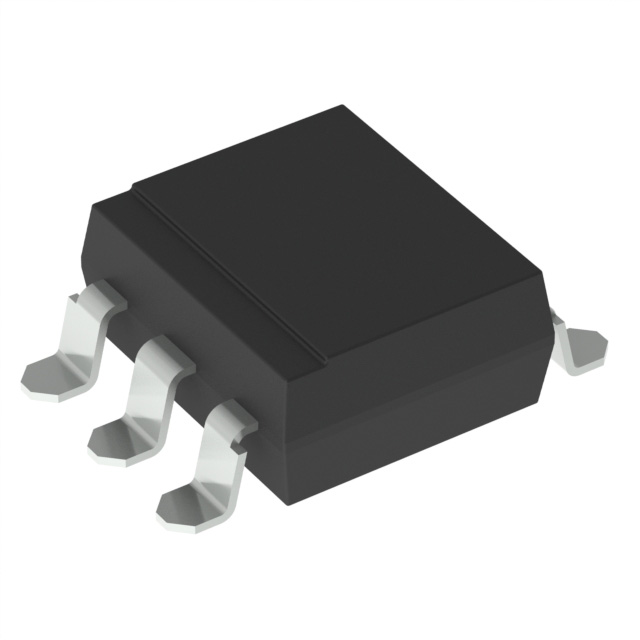

VOT8025AB-V

Active

Vishay Semiconductor Opto Division

OPTOCOUPLER PHOTOTRIAC 800V SMD5

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

OPTOCOUPLER PHOTOTRIAC 800V SMD5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac Output 5300Vrms 1 Channel 6-SMD

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	VOT8025AB-V	VOT8025 Series

Approval Agency	VDE, CQC, cUL, UL	VDE, CQC, cUL, UL
Current - DC Forward (If) (Max)	50 mA	50 mA
Current - Hold (Ih)	400 µA	400 µA
Current - LED Trigger (Ift) (Max) [Max]	5 mA	5 mA
Current - On State (It (RMS)) (Max)	100 mA	100 mA
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Triac	Triac
Package / Case	6-SMD (5 Leads), Gull Wing	6-DIP, 6-SMD (5 Leads), Gull Wing, 6-SMD, Gull Wing
Package / Case	-	7.62 mm
Package / Case	-	0.3 - 10.16 in
Static dV/dt (Min) [Min]	1 kV/µs	1 kV/µs
Supplier Device Package	6-SMD	6-DIP, 6-SMD
Voltage - Isolation	5300 Vrms	5300 Vrms
Voltage - Off State	800 V	800 V
Zero Crossing Circuit	True	True

OPTOCOUPLER PHOTOTRIAC 800V DIP5

Part	Number of Channels	Voltage - Off State	Current - Hold (Ih)	Approval Agency	Output Type	Mounting Type	Static dV/dt (Min) [Min]	Voltage - Isolation	Package / Case	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (RMS)) (Max)	Current - LED Trigger (Ift) (Max) [Max]	Supplier Device Package	Current - DC Forward (If) (Max)
Vishay Semiconductor Opto Division VOT8025AD-V	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Through Hole	1 kV/µs	5300 Vrms	7.62 mm	6-DIP	0.3 in, 5 Leads	-40 °C	110 °C	100 mA	5 mA	6-DIP	50 mA
Vishay Semiconductor Opto Division VOT8025AB-VT	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Surface Mount	1 kV/µs	5300 Vrms		6-SMD (5 Leads), Gull Wing		-40 °C	110 °C	100 mA	5 mA	6-SMD	50 mA
Vishay Semiconductor Opto Division VOT8025AB-V	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Surface Mount	1 kV/µs	5300 Vrms		6-SMD (5 Leads), Gull Wing		-40 °C	110 °C	100 mA	5 mA	6-SMD	50 mA
Vishay Semiconductor Opto Division VOT8025AB	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Surface Mount	1 kV/µs	5300 Vrms		6-SMD, Gull Wing		-40 °C	110 °C	100 mA	5 mA	6-SMD	50 mA
Vishay Semiconductor Opto Division VOT8025AG-V	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Through Hole	1 kV/µs	5300 Vrms		6-DIP	5 Leads, 10.16 mm	-40 °C	110 °C	100 mA	5 mA	6-DIP	50 mA
