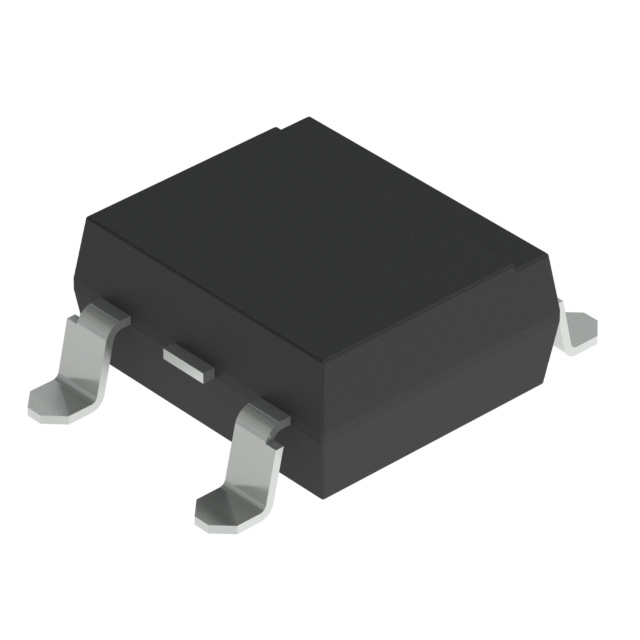

VOT8025AB-VT

Active

Vishay Semiconductor Opto Division

OPTOISOLTR 5.3KV TRIAC 1CH 6-SMD

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

OPTOISOLTR 5.3KV TRIAC 1CH 6-SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac Output 5300Vrms 1 Channel 6-SMD

Technical documentation and resources

Specification	VOT8025AB-VT	VOT8025 Series

Approval Agency	VDE, CQC, cUL, UL	VDE, CQC, cUL, UL
Current - DC Forward (If) (Max)	50 mA	50 mA
Current - Hold (Ih)	400 µA	400 µA
Current - LED Trigger (Ift) (Max) [Max]	5 mA	5 mA
Current - On State (It (RMS)) (Max)	100 mA	100 mA
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Triac	Triac
Package / Case	6-SMD (5 Leads), Gull Wing	6-DIP, 6-SMD (5 Leads), Gull Wing, 6-SMD, Gull Wing
Package / Case	-	7.62 mm
Package / Case	-	0.3 - 10.16 in
Static dV/dt (Min) [Min]	1 kV/µs	1 kV/µs
Supplier Device Package	6-SMD	6-DIP, 6-SMD
Voltage - Isolation	5300 Vrms	5300 Vrms
Voltage - Off State	800 V	800 V
Zero Crossing Circuit	True	True

Part	Number of Channels	Voltage - Off State	Current - Hold (Ih)	Approval Agency	Output Type	Mounting Type	Static dV/dt (Min) [Min]	Voltage - Isolation	Package / Case	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (RMS)) (Max)	Current - LED Trigger (Ift) (Max) [Max]	Supplier Device Package	Current - DC Forward (If) (Max)
Vishay Semiconductor Opto Division VOT8025AD-V	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Through Hole	1 kV/µs	5300 Vrms	7.62 mm	6-DIP	0.3 in, 5 Leads	-40 °C	110 °C	100 mA	5 mA	6-DIP	50 mA
Vishay Semiconductor Opto Division VOT8025AB-VT	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Surface Mount	1 kV/µs	5300 Vrms		6-SMD (5 Leads), Gull Wing		-40 °C	110 °C	100 mA	5 mA	6-SMD	50 mA
Vishay Semiconductor Opto Division VOT8025AB-V	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Surface Mount	1 kV/µs	5300 Vrms		6-SMD (5 Leads), Gull Wing		-40 °C	110 °C	100 mA	5 mA	6-SMD	50 mA
Vishay Semiconductor Opto Division VOT8025AB	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Surface Mount	1 kV/µs	5300 Vrms		6-SMD, Gull Wing		-40 °C	110 °C	100 mA	5 mA	6-SMD	50 mA
Vishay Semiconductor Opto Division VOT8025AG-V	1	800 V	400 µA	CQC, cUL, UL, VDE	Triac	Through Hole	1 kV/µs	5300 Vrms		6-DIP	5 Leads, 10.16 mm	-40 °C	110 °C	100 mA	5 mA	6-DIP	50 mA
