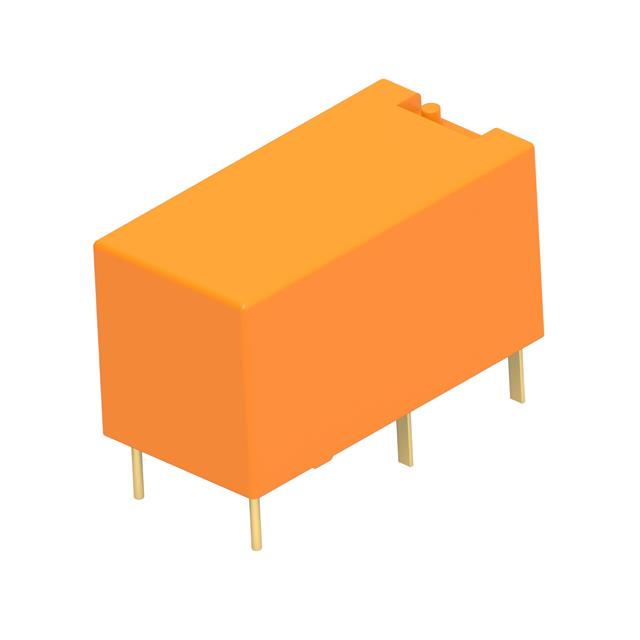

1956226-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 6A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1956226-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 6A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1956226-1 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 16.7 mA |
| Coil Insulation | Class F |
| Coil Resistance | 720 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.16 | |
| 10 | $ 4.84 | |||
| 25 | $ 4.30 | |||
| 50 | $ 4.09 | |||
| 100 | $ 3.87 | |||
| 250 | $ 3.44 | |||
| 500 | $ 3.23 | |||
| 1000 | $ 3.01 | |||
Description
General part information
RE0350 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
