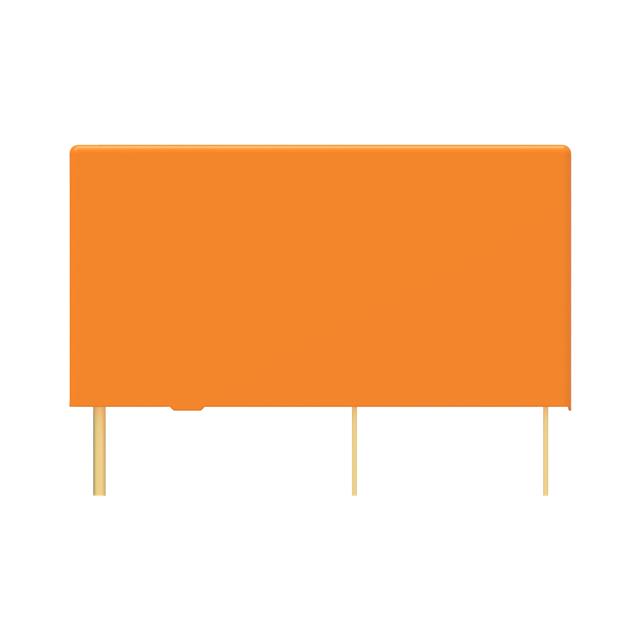

1956226-2
ActiveTE Connectivity Potter & Brumfield Relays
RE035024
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1956226-2
ActiveTE Connectivity Potter & Brumfield Relays
RE035024
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1956226-2 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 8.3 mA |
| Coil Insulation | Class F |
| Coil Resistance | 2.88 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 6 A |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.16 | |
| 10 | $ 4.84 | |||
| 25 | $ 4.30 | |||
| 50 | $ 4.09 | |||
| 100 | $ 3.87 | |||
| 250 | $ 3.44 | |||
| 500 | $ 3.23 | |||
| 1000 | $ 3.01 | |||
Description
General part information
RE0350 Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
