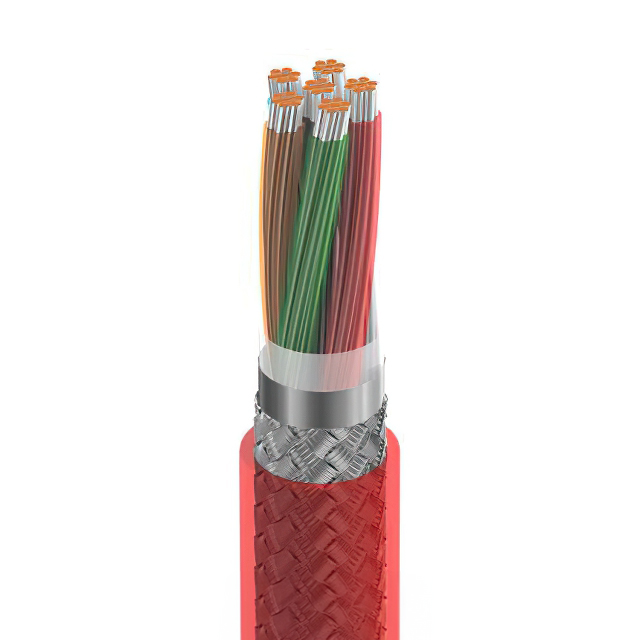

Specification	83556 0021000

Cable Type	Conductor, Multi
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	30
Jacket (Insulation) Diameter	0.183 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	1000 ft
Number of Conductors	6
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-70 °C
Ratings	Style, UL, CMP
Shield Coverage	85%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Instrumentation, Control, Audio
Voltage	300 V
Wire Gauge	22 AWG

83556 Series

Part	Jacket (Insulation) Diameter	Operating Temperature (Min)	Operating Temperature (Max)	Jacket Color	Shield Type	Jacket (Insulation) Thickness	Number of Conductors	Length	Jacket (Insulation) Material	Conductor Material	Conductor Insulation	Voltage	Usage	Cable Type	Ratings	Conductor Strand Gauge	Conductor Strand Count	Wire Gauge	Shield Coverage	Shield Material
Belden Inc. 83556 0021000	0.183 in	-70 °C	200 °C	Red	Braid Foil	0.014 in	6	1000 ft	Fluorinated Ethylene-Propylene (FEP) Plenum	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	300 V	Audio Control Instrumentation	Conductor Multi	CMP Style UL	30	7 Strands	22 AWG	100% 85%	Aluminum Copper Tinned
Belden Inc. 83556 002500	0.183 in	-70 °C	200 °C	Red	Braid Foil	0.014 in	6	500 ft	Fluorinated Ethylene-Propylene (FEP) Plenum	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	300 V	Audio Control Instrumentation	Conductor Multi	CMP Style UL	30	7 Strands	22 AWG	100% 85%	Aluminum Copper Tinned
Belden Inc. 83556 002100	0.183 in	-70 °C	200 °C	Red	Braid Foil	0.014 in	6	100 ft	Fluorinated Ethylene-Propylene (FEP) Plenum	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	300 V	Audio Control Instrumentation	Conductor Multi	CMP Style UL	30	7 Strands	22 AWG	100% 85%	Aluminum Copper Tinned
