83556 002100
ActiveBelden Inc.

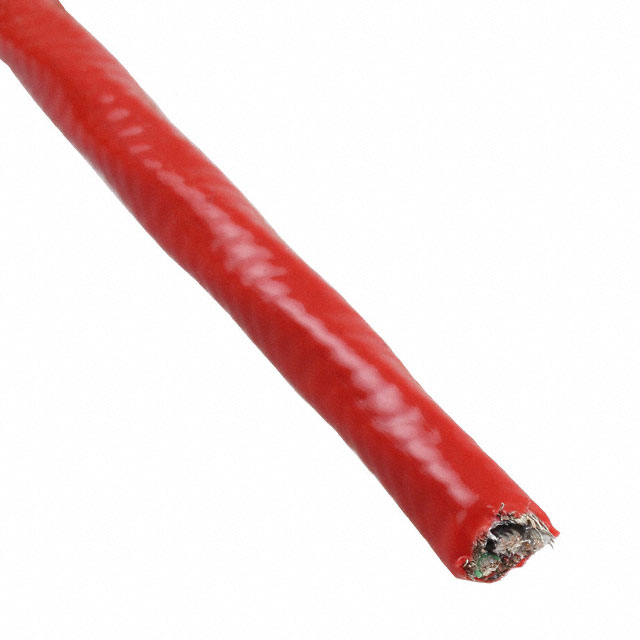

CABLE 6COND 22AWG RED SHLD
Deep-Dive with AI
Search across all available documentation for this part.
83556 002100
ActiveBelden Inc.
CABLE 6COND 22AWG RED SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 83556 002100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 4.65 mm |
| Jacket (Insulation) Diameter [diameter] | 0.183 in |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP), Plenum |
| Jacket (Insulation) Thickness | 0.356 mm |
| Jacket (Insulation) Thickness | 0.014 in |
| Jacket Color | Red |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -70 °C |
| Ratings | UL Style CMP |
| Shield Coverage | 100 %, 85 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | Audio, Instrumentation, Control |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 100 | $ 14.09 | |
| 200 | $ 13.52 | |||
| 300 | $ 13.04 | |||
| 500 | $ 12.57 | |||
Description
General part information
83556 Series
6 Conductor Multi-Conductor Cable Red 22 AWG Foil, Braid 100.0' (30.5m)
