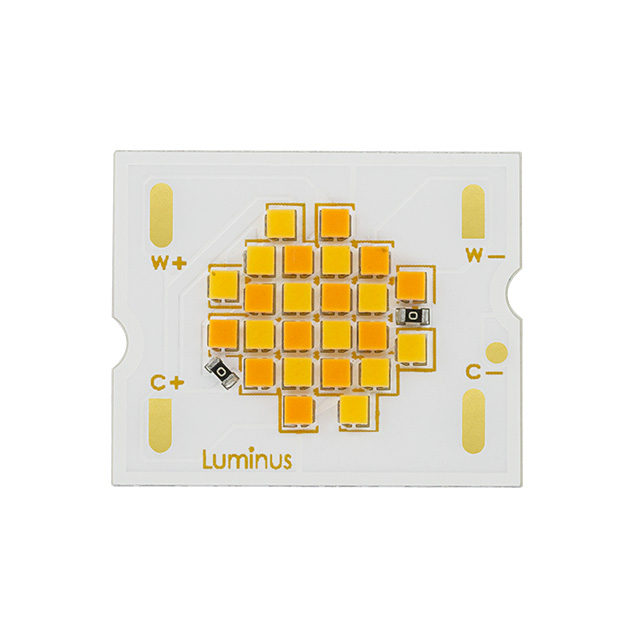

CTM-14-6527-90-36-TW01
ActiveLuminus Devices Inc.
LED MOD CTM WHITE RECT 6500K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CTM-14-6527-90-36-TW01
ActiveLuminus Devices Inc.
LED MOD CTM WHITE RECT 6500K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTM-14-6527-90-36-TW01 |
|---|---|
| CCT (K) [Max] | 6500 K |
| CCT (K) [Min] | 2700 K |
| Color | White, Cool, White, Warm |
| Configuration | Rectangle |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 440 mA |
| Current - Test | 400 mA |
| Height [z] | 1.58 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 14.5 mm |
| Luminous Flux @ Current/Temperature | 1420 lm, 1255 lm |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [y] | 20 mm |
| Temperature - Test | 85 °C |
| Type | LED Module |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 37 V |
CTM-14 Series
| Part | Color | Current - Test | Type | Luminous Flux @ Current/Temperature | Temperature - Test | CCT (K) [Max] | CCT (K) [Min] | Voltage - Forward (Vf) (Typ) | Viewing Angle | Height [z] | CRI (Color Rendering Index) | Size / Dimension [y] | Size / Dimension [x] | Lens Type | Light Emitting Surface (LES) [diameter] | Current - Max [Max] | Configuration | Wavelength | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | CCT (K) | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Luminus Devices Inc. | White Cool White Warm | 400 mA | LED Module | 1255 lm 1420 lm | 85 °C | 6500 K | 2700 K | 37 V | 130 ° | 1.58 mm | 90 | 20 mm | 24 mm | Flat | 14.5 mm | 440 mA | Rectangle | ||||||||||||||
Luminus Devices Inc. | Blue Green Red White | LED Module | 85 °C | 24 V | 130 ° | 1.58 mm | 90 | 20 mm | 24 mm | Flat | 14.5 mm | 250 mA | Rectangle | 458 nm 530 nm 625 nm | 24 lm/W | 135 lm/W | 20 lm/W | 91 lm/W | 115 lm | 94 lm | 650 lm | 436 lm | 2700 K | 200 mA | 200 mA | 200 mA | 200 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.47 | |
| 30 | $ 7.22 | |||
| 90 | $ 6.61 | |||
| 450 | $ 5.97 | |||
| 960 | $ 5.74 | |||
Description
General part information
CTM-14 Series
LED Lighting COBs Engines Modules LED Module CTM, Human Centric (HCL) White, Warm / White, Cool Rectangle
