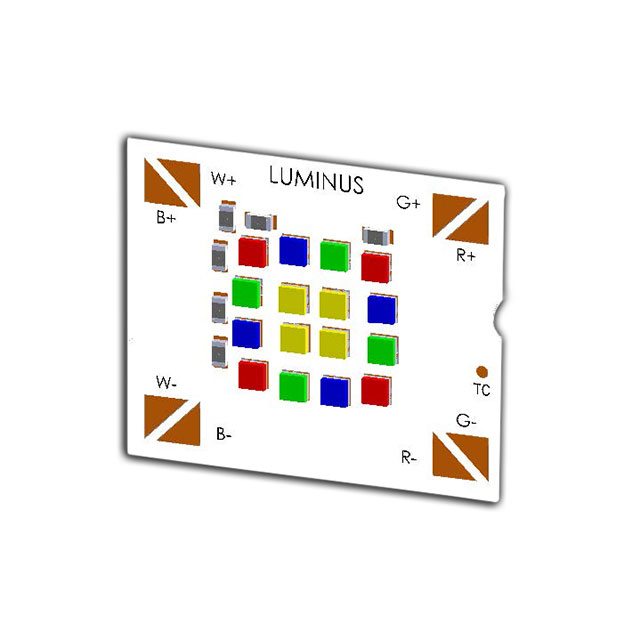

CTM-14-RGBW-24-TW01
ActiveLuminus Devices Inc.
LED CTM14 RGBW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CTM-14-RGBW-24-TW01
ActiveLuminus Devices Inc.
LED CTM14 RGBW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTM-14-RGBW-24-TW01 |
|---|---|
| CCT (K) | 2700 K |
| Color | Green, Blue, White, Red |
| Configuration | Rectangle |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 250 mA |
| Current - Test [custom] | 200 mA |
| Current - Test [custom] | 200 mA |
| Current - Test [custom] | 200 mA |
| Current - Test [custom] | 200 mA |
| Height [z] | 1.58 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 14.5 mm |
| Lumens/Watt @ Current - Test [custom] | 24 lm/W |
| Lumens/Watt @ Current - Test [custom] | 135 lm/W |
| Lumens/Watt @ Current - Test [custom] | 20 lm/W |
| Lumens/Watt @ Current - Test [custom] | 91 lm/W |
| Luminous Flux @ Current/Temperature [custom] | 115 lm |
| Luminous Flux @ Current/Temperature [custom] | 94 lm |
| Luminous Flux @ Current/Temperature [custom] | 650 lm |
| Luminous Flux @ Current/Temperature [custom] | 436 lm |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [y] | 20 mm |
| Temperature - Test | 85 °C |
| Type | LED Module |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 24 V |
| Wavelength | 458 nm, 530 nm, 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.76 | |
| 30 | $ 8.53 | |||
| 90 | $ 7.05 | |||
| 450 | $ 6.17 | |||
| 960 | $ 5.84 | |||
Description
General part information
CTM-14 Series
LED Lighting COBs Engines Modules LED Module - Red, Green, Blue, White (RGBW) Rectangle
