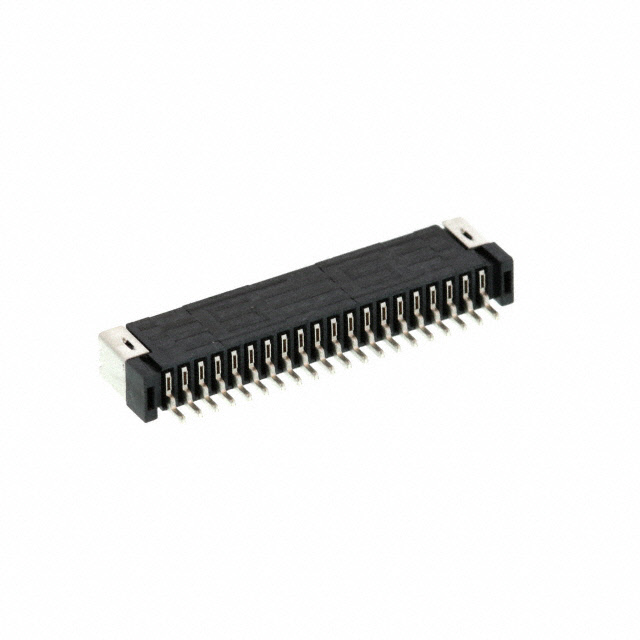

FC1-20-02-T-WT

Active

Samtec Inc.

CONN FFC 20POS 1MM R/A

Deep-Dive with AI

DocumentsFC1 Series Other Related Documents 01 FC1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FC1-20-02-T-WT

Cable End Type	Straight
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	2 A
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP)
Mating Cycles	25
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder

FC1-20 Series

Part	Features	Termination	Mating Cycles	Housing Material	Pitch [x]	Pitch [x]	Contact Finish	Cable End Type	Current Rating (Amps)	Flat Flex Type	Housing Color	Mounting Type	Connector/Contact Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness	Number of Positions	Height Above Board	Height Above Board [z]
Samtec Inc. FC1-20-L2-T-WT-TR	Low Insertion Force (LIF) Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-L2-T	Low Insertion Force (LIF) Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-01-T-TR		Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount	Contacts Vertical - 2 Sided	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20	5.18 mm	0.204 in
Samtec Inc. FC1-20-L1-TM-LC	Board Lock Low Insertion Force (LIF) Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount	Contacts Vertical - 2 Sided	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20	5.18 mm	0.204 in
Samtec Inc. FC1-20-L1-T-K	Low Insertion Force (LIF) Pick and Place Cap Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount	Contacts Vertical - 2 Sided	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20	5.18 mm	0.204 in
Samtec Inc. FC1-20-02-T-WT-TR	Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-02-T-WT	Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-L2-TM-WT-TR	Low Insertion Force (LIF) Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-01-T-LC-K	Board Lock Pick and Place Cap	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount	Contacts Vertical - 2 Sided	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20	5.18 mm	0.204 in
