FC1-20-01-T-TR

Active

Samtec Inc.

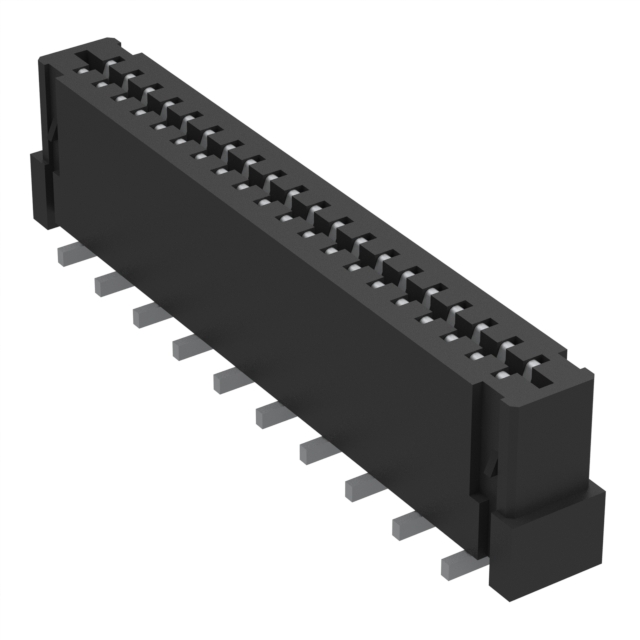

CONN FFC VERT 20POS 1MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFC1 Datasheet Datasheet +1

FC1-20-01-T-TR

Active

Samtec Inc.

CONN FFC VERT 20POS 1MM SMD

Deep-Dive with AI

DocumentsFC1 Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FC1-20-01-T-TR

Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 2 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	2 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	5.18 mm
Height Above Board [z]	0.204 in
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP)
Mating Cycles	25
Mounting Type	Surface Mount
Number of Positions	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder

FC1-20 Series

Part	Features	Termination	Mating Cycles	Housing Material	Pitch [x]	Pitch [x]	Contact Finish	Cable End Type	Current Rating (Amps)	Flat Flex Type	Housing Color	Mounting Type	Connector/Contact Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness	Number of Positions	Height Above Board	Height Above Board [z]
Samtec Inc. FC1-20-L2-T-WT-TR	Low Insertion Force (LIF) Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-L2-T	Low Insertion Force (LIF) Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-01-T-TR		Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount	Contacts Vertical - 2 Sided	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20	5.18 mm	0.204 in
Samtec Inc. FC1-20-L1-TM-LC	Board Lock Low Insertion Force (LIF) Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount	Contacts Vertical - 2 Sided	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20	5.18 mm	0.204 in
Samtec Inc. FC1-20-L1-T-K	Low Insertion Force (LIF) Pick and Place Cap Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount	Contacts Vertical - 2 Sided	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20	5.18 mm	0.204 in
Samtec Inc. FC1-20-02-T-WT-TR	Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-02-T-WT	Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-L2-TM-WT-TR	Low Insertion Force (LIF) Solder Retention	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount Right Angle	Contacts Top and Bottom	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20
Samtec Inc. FC1-20-01-T-LC-K	Board Lock Pick and Place Cap	Solder	25	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Tin	Straight	2 A	FFC	Black	Surface Mount	Contacts Vertical - 2 Sided	Phosphor Bronze	105 ░C	-55 °C	0.3 mm	20	5.18 mm	0.204 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.37
		10	$ 2.58
		25	$ 2.32
		50	$ 2.15
		100	$ 1.99
		250	$ 1.80
	Digi-Reel®	1	$ 3.37
		10	$ 2.58
		25	$ 2.32
		50	$ 2.15
		100	$ 1.99
		250	$ 1.80
	Tape & Reel (TR)	500	$ 1.66
		1000	$ 1.55
		1500	$ 1.49
		2500	$ 1.42
		3500	$ 1.37
		5000	$ 1.33

Description

General part information

FC1-20 Series

20 Position FFC Connector Contacts, Vertical - 2 Sided 0.039" (1.00mm) Surface Mount

FC1-20-01-T-TR

Deep-Dive with AI

FC1-20-01-T-TR

Deep-Dive with AI

Technical Specifications

FC1-20 Series

Pricing

Description

FC1-20 Series

Documents

FC1 Datasheet

Datasheet

FC1 Series Other Related Documents 01

FC1-20 Series
