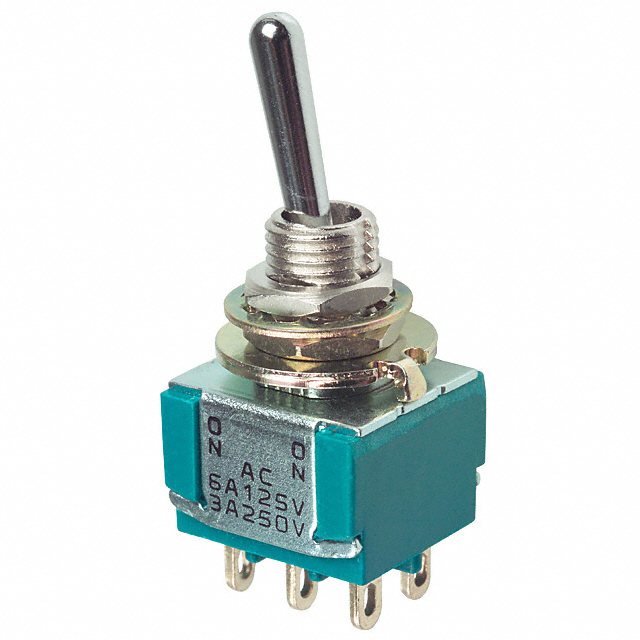

MTA206N
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE DPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTA206N
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE DPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTA206N |
|---|---|
| Actuator Length [x] | 10.49 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | DPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 80000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 6.4 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.37 | |
| 10 | $ 16.47 | |||
| 25 | $ 15.75 | |||
| 50 | $ 14.93 | |||
| 100 | $ 14.39 | |||
| 300 | $ 13.48 | |||
| 500 | $ 12.49 | |||
Description
General part information
MTA206 Series
Toggle Switch DPDT Panel Mount
