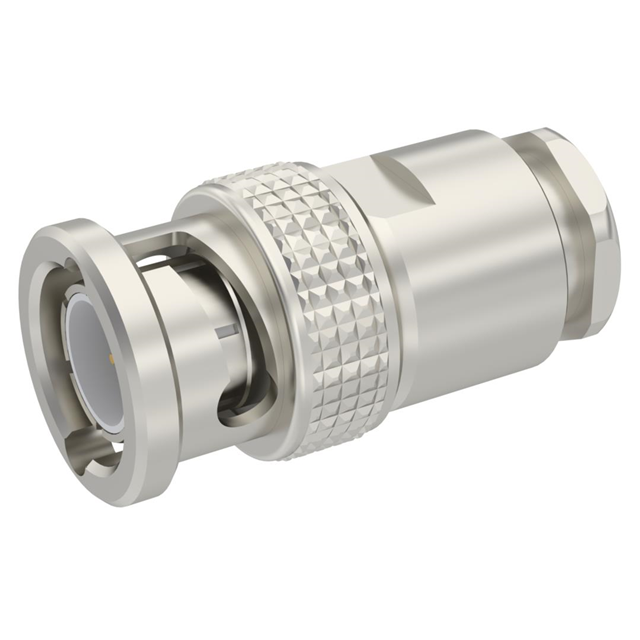

R142016161

Active

Radiall USA, Inc.

BNC / STRAIGHT PLUG CLAMP TYPE C

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT PLUG CLAMP TYPE C

Technical Specifications

Parameters and characteristics for this part

Part	Connector Style	Body Finish	Fastening Type	Mounting Type	Insertion Loss	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Center Contact Plating	Impedance	Shield Termination	Cable Group	Housing Color	Connector Type	Frequency - Max [Max]	Center Contact Material	Body Material	Contact Termination	Voltage Rating	Dielectric Material
Radiall USA, Inc. R142016000W	BNC	Nickel	Bayonet Lock	Free Hanging (In-Line)	0.2 dB	500	-65 ░C	165 °C	1	Gold	75 Ohms	Clamp	RG-59	Silver	Male Pin Plug	1.5 GHz	Brass	Brass	Solder	500 V	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R142016161	BNC	Nickel	Bayonet Lock	Free Hanging (In-Line)	0.2 dB		-35 °C	70 °C	1	Gold	75 Ohms	Clamp	RG-59	Silver	Male Pin Plug	1.5 GHz	Brass	Brass	Solder	500 V	Polypropylene (PP)
Radiall USA, Inc. R142017000	BNC	Nickel	Bayonet Lock	Free Hanging (In-Line)	0.2 dB	500	-65 ░C	165 °C	1	Gold	75 Ohms	Clamp	RG-6A	Silver	Male Pin Plug	1.5 GHz	Brass	Brass	Solder	500 V	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R142018000	BNC	Nickel	Bayonet Lock	Free Hanging (In-Line)	0.2 dB	500	-65 ░C	165 °C	1	Gold	75 Ohms	Clamp	144 216 RG-11	Silver	Male Pin Plug	1.5 GHz	Brass	Brass	Solder	500 V	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.26

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
