R142018000

Active

Radiall USA, Inc.

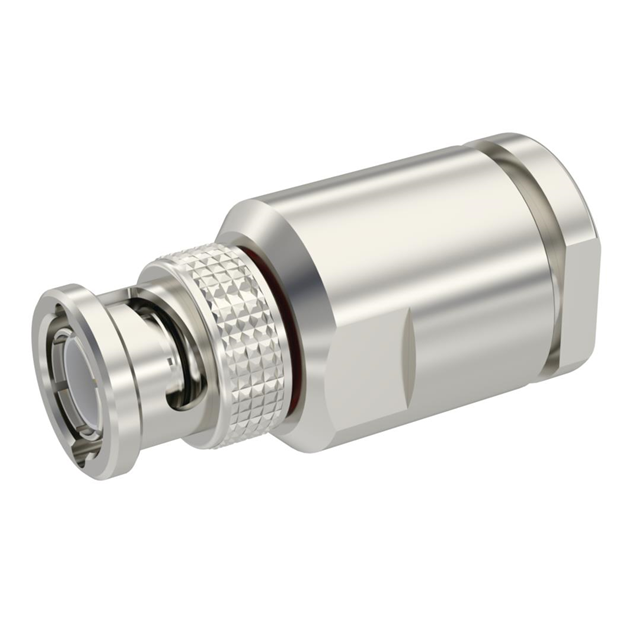

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, SOLDER, 75 OHM, RG11, RG144, RG216, BRASS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, SOLDER, 75 OHM, RG11, RG144, RG216, BRASS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R142018000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-11, 144, 216
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Connector Style	Body Finish	Fastening Type	Mounting Type	Insertion Loss	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Center Contact Plating	Impedance	Shield Termination	Cable Group	Housing Color	Connector Type	Frequency - Max [Max]	Center Contact Material	Body Material	Contact Termination	Voltage Rating	Dielectric Material
Radiall USA, Inc. R142016000W	BNC	Nickel	Bayonet Lock	Free Hanging (In-Line)	0.2 dB	500	-65 ░C	165 °C	1	Gold	75 Ohms	Clamp	RG-59	Silver	Male Pin Plug	1.5 GHz	Brass	Brass	Solder	500 V	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R142016161	BNC	Nickel	Bayonet Lock	Free Hanging (In-Line)	0.2 dB		-35 °C	70 °C	1	Gold	75 Ohms	Clamp	RG-59	Silver	Male Pin Plug	1.5 GHz	Brass	Brass	Solder	500 V	Polypropylene (PP)
Radiall USA, Inc. R142017000	BNC	Nickel	Bayonet Lock	Free Hanging (In-Line)	0.2 dB	500	-65 ░C	165 °C	1	Gold	75 Ohms	Clamp	RG-6A	Silver	Male Pin Plug	1.5 GHz	Brass	Brass	Solder	500 V	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R142018000	BNC	Nickel	Bayonet Lock	Free Hanging (In-Line)	0.2 dB	500	-65 ░C	165 °C	1	Gold	75 Ohms	Clamp	144 216 RG-11	Silver	Male Pin Plug	1.5 GHz	Brass	Brass	Solder	500 V	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
